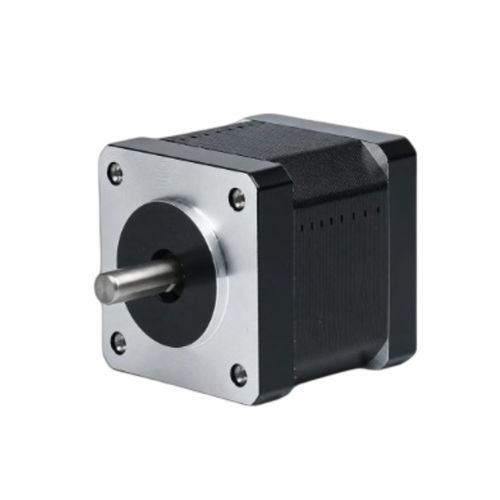

Hybrid stepper motor 35BHH34-200A-24

NEMA 14

Product Overview
The 35BHH34-200A-24 is a 35mm (NEMA 14) 2-phase hybrid stepper motor delivering 0.137 N·m (1.4 kg·cm) of holding torque with a 34 mm body length. Rated at 2 A/phase and fitted with a 5 mm shaft, it is suitable for compact precision motion-control applications. Recommended driver: CW215.

Key Highlights

• 2-phase, 1.8° step angle — 0.137 N·m holding torque
• Rated current 2 A/phase — 35 mm (NEMA 14) frame
• 34 mm body length — 5 mm shaft diameter

Quick specification cards

• Phase: 2
• Step Angle: 1.8°
• Holding Torque: 0.137 N.m
• Current/Phase: 2 A
• Shaft Diameter: 5 mm
• No. of Leads: 4

Electrical Specifications (table)
Parameter — Value
Step Angle — 1.8° ± 5%
Holding Torque — 0.137 N·m (1.4 kg·cm)
Rated Current — 2 A/Phase
No. of Phases — 2
No. of Leads — 4
Shaft Diameter — 5 mm
Frame Size — 35 mm (NEMA 14)
Body Length — 34 mm
Weight — 0.22 kg
Recommended Driver — CW215

Additional Illustrations
Mechanical drawing and torque-speed curve are provided for the 35BH series (35mm / NEMA 14) to assist mechanical integration and performance evaluation.

Technical specifications

• Model family: 35BHH series
• Frame: 35 mm (NEMA 14)
• Body length: 34 mm
• Step angle: 1.8° ± 5%
• Holding torque: 0.137 N·m (1.4 kg·cm)
• Rated current: 2 A per phase
• Phases: 2
• Number of leads: 4
• Shaft diameter: 5 mm
• Weight: 0.22 kg
• Recommended driver: CW215
