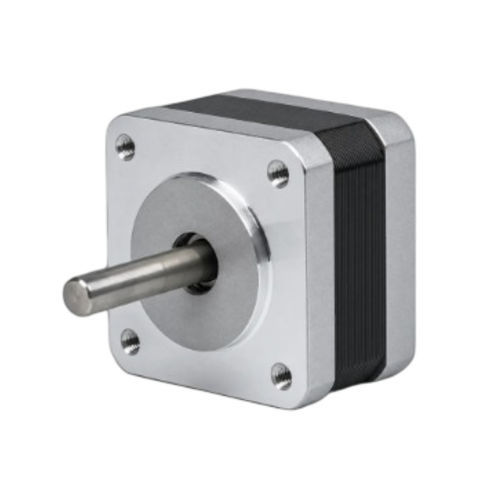

Stepper motor 35BH20-020-16

hybrid steppertwo-phase steppercompact

Product overview
The 35BH20 (35BH Series) is a 35 mm (NEMA 14) 2‑phase hybrid stepper motor providing 0.0245–0.025 N·m (0.25 kg·cm) holding torque in a 20 mm body length. Rated at 0.2 A/phase and with a 5 mm shaft, it is suited to compact precision motion systems. Recommended driver: CW215.

Key highlights

• Step angle: 1.8° ± 5%
• Holding torque: 0.0245–0.025 N·m (0.25 kg·cm)
• Rated current: 0.2 A / phase
• Frame: 35 mm (NEMA 14), body length: 20 mm
• Shaft diameter: 5 mm
• Number of phases/leads: 2 phases / 4 leads

Electrical specifications
Step angle — 1.8° ± 5%
Holding torque — 0.0245–0.025 N·m (0.25 kg·cm)
Rated current — 0.2 A / phase
Number of phases — 2
Number of leads — 4
Shaft diameter — 5 mm
Frame size — 35 mm (NEMA 14)
Body length — 20 mm
Weight — 0.12 kg
Recommended driver — CW215

Diagrams & charts
Mechanical drawing available for the 35BH Series (35 mm / NEMA 14).
Torque‑speed curve available for the 35BH Series.

Characteristics / Technical specifications

• Model: 35BH20
• Series: 35BH Series
• Frame size: 35 mm (NEMA 14)
• Body length: 20 mm
• Phases: 2
• Step angle: 1.8° ± 5%
• Holding torque: 0.0245–0.025 N·m (0.25 kg·cm)
• Rated current: 0.2 A / phase
• Number of leads: 4
• Shaft diameter: 5 mm
• Weight: 0.12 kg
• Recommended driver: CW215
