Three-phase motor 42BHP37W-060-24

hybrid steppercompactNEMA 17

Overview

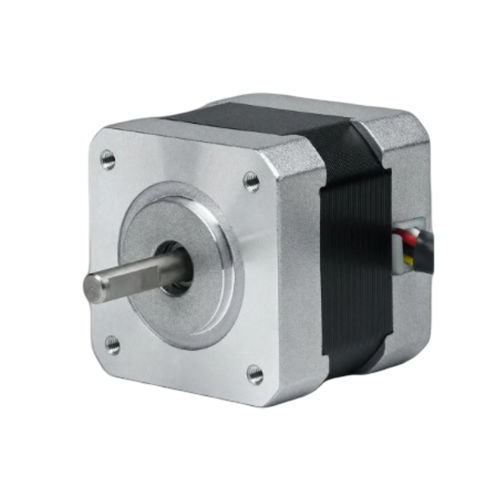

The 42BHP37W-060-24 is a 42mm (NEMA 17) 3-phase hybrid stepper motor providing 0.255 N·m (2.6 kg·cm) holding torque in a compact 37 mm body. Rated at 0.6 A/phase, it is designed for precision motion control in industrial automation and equipment. Recommended driver: CW215.

Key Highlights

• Step angle: 1.2° ± 5%
• Holding torque: 0.255 N·m (2.6 kg·cm)
• Rated current: 0.6 A/Phase
• Frame size: 42 mm (NEMA 17)
• Body length: 37 mm — Shaft diameter: 5 mm
• 3 phases, 3 leads
• Recommended driver: CW215

Electrical Specifications (excerpt)

• Step Angle: 1.2° ± 5%
• Holding Torque: 0.255 N·m (2.6 kg·cm)
• Rated Current: 0.6 A/Phase
• Number of Phases: 3
• Number of Leads: 3
• Shaft Diameter: 5 mm
• Frame Size: 42 mm (NEMA 17)
• Body Length: 37 mm
• Weight: 0.3 kg
• Recommended Driver: CW215

Mechanical & Performance
Mechanical drawing and torque-speed curve are provided for the 42BH series to support mounting and performance evaluation. Check the torque-speed data when selecting the motor for dynamic load profiles.

Applications

• Industrial automation and conveyor systems
• Robotics and pick-and-place equipment
• CNC and positioning stages
• Precision instruments and laboratory automation

Mounting & Compatibility

• NEMA 17 mounting pattern — 42 mm frame
• 5 mm shaft — suitable for direct couplings and pulleys
• Recommended driver compatibility: CW215; verify driver settings for 1.2° step angle and 0.6 A/phase
