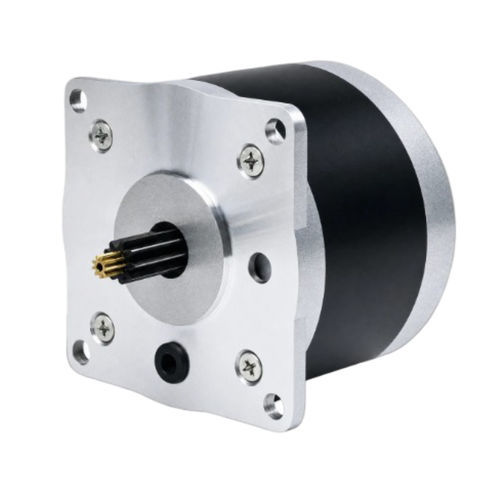

Two-phase stepper motor 86BH62-125B-N30

hybrid steppercompactNEMA 34

Product overview
The 86BH62 is a NEMA 34 hybrid stepper motor with a compact 62 mm body, delivering 1.28 N·m (13 kg·cm) holding torque at 1.25 A. The 6-lead configuration allows flexible wiring in series or parallel, and the low current draw makes it suitable for battery-powered or energy-efficient automation systems.

Key Highlights

• 1.28 N·m (13 kg·cm) holding torque
• Low current: 1.25 A/Phase
• 86 mm (NEMA 34) frame, compact 62 mm body
• 6-lead for series/parallel wiring flexibility
• Recommended driver: CWD860H

Electrical Specifications
Step Angle: 1.8° ± 5%
Holding Torque: 1.28 N·m (13 kg·cm)
Rated Current: 1.25 A/Phase
No. of Phases: 2
No. of Leads: 6
Shaft Diameter: 9.5 mm
Frame Size: 86 mm (NEMA 34)
Body Length: 62 mm
Weight: 1.1 kg
Recommended Driver: CWD860H

Technical specifications

• Model: 86BH62
• Frame Size: 86 mm (NEMA 34)
• Body Length: 62 mm
• Step Angle: 1.8° ± 5%
• Holding Torque: 1.28 N·m (13 kg·cm)
• Rated Current: 1.25 A/Phase
• Number of Phases: 2
• Number of Leads: 6 (6-lead configuration for series/parallel wiring)
• Shaft Diameter: 9.5 mm
• Weight: 1.1 kg
• Recommended Driver: CWD860H
• Product datasheet reference: 86BH62-125B-N30
