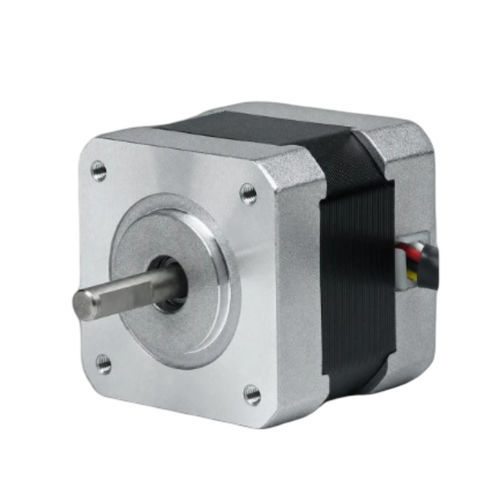

Two-phase stepper motor 42BHM34-060-15

hybrid stepperNEMA 17for robotics

Product overview
The 42BHM34-060-15 is a 42 mm (NEMA 17) 2-phase hybrid stepper motor delivering 0.255 N·m (2.6 kg·cm) of holding torque in a 34 mm body. Rated at 0.6 A/phase, it is suited for precision motion control in industrial automation, robotics and instrumentation. Recommended driver: CW215.

Key Highlights

• 2-phase, 0.9° step angle — 0.255 N·m (2.6 kg·cm) holding torque
• Rated current 0.6 A/phase — 42 mm (NEMA 17) frame
• Compact 34 mm body length with 5 mm shaft

Electrical Specifications (table)
Step Angle: 0.9° ± 5%
Holding Torque: 0.255 N·m (2.6 kg·cm)
Rated Current: 0.6 A/Phase
No. of Phases: 2
No. of Leads: 4
Shaft Diameter: 5 mm
Frame Size: 42 mm (NEMA 17)
Body Length: 34 mm
Weight: 0.28 kg
Recommended Driver: CW215

Mechanical / Figures
Mechanical drawing available for 42BH Series. Torque-speed curve available for 42BH Series.

Technical specifications

• Model reference: 42BHM34-060-15
• Phase: 2
• Step Angle: 0.9° ± 5%
• Holding Torque: 0.255 N·m (2.6 kg·cm)
• Rated Current: 0.6 A/Phase
• No. of Leads: 4
• Shaft Diameter: 5 mm
• Frame Size: 42 mm (NEMA 17)
• Body Length: 34 mm
• Weight: 0.28 kg
• Recommended Driver: CW215
• Datasheet identifier: 42BHM34-060-15
