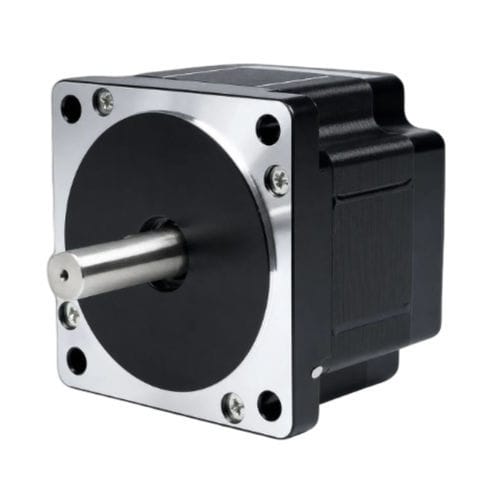

Two-phase stepper motor 86BHH65-400A-33C

hybrid stepperNEMA 34

Overview
The 86BHH65 is a NEMA 34 hybrid stepper motor with a 65 mm body, delivering 3.33 N·m (34 kg·cm) holding torque at 4.0 A. Its compact form factor and 12 mm shaft make it suitable for CNC routers, engraving machines and automation equipment where installation space is limited but moderate torque is required.

Key Highlights

• Holding torque: 3.33 N·m (34 kg·cm)
• Body length: 65 mm
• Frame: 86 mm (NEMA 34)
• Shaft diameter: 12 mm
• Recommended driver: CWD860H

Quick Specifications
Frame Size: 86 mm (NEMA 34)
Step Angle: 1.8°
Holding Torque: 3.33 N·m
Rated Current: 4.0 A/Phase
Phases: 2
Leads: 4
Shaft Diameter: 12 mm
Body Length: 65 mm
Weight: 1.2 kg
Recommended Driver: CWD860H

Additional Technical Information
Step angle tolerance: 1.8° ± 5%
Holding torque notation: 3.33 N·m (34 kg·cm)

Technical characteristics

• Model: 86BHH65
• Frame Size: 86 mm (NEMA 34)
• Body Length: 65 mm
• Step Angle: 1.8° ± 5%
• Holding Torque: 3.33 N·m (34 kg·cm)
• Rated Current: 4.0 A/Phase
• Number of Phases: 2
• Number of Leads: 4
• Shaft Diameter: 12 mm
• Weight: 1.2 kg
• Recommended Driver: CWD860H
