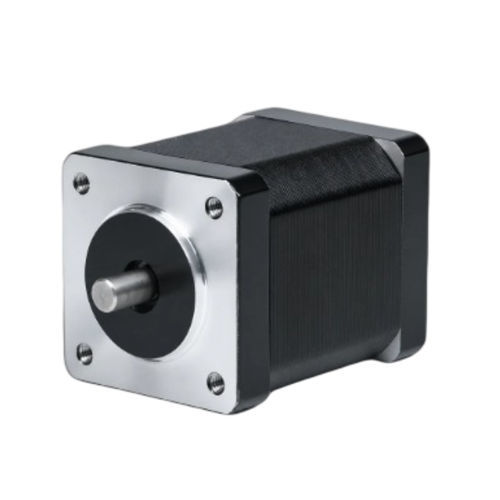

Hybrid stepper motor 35BHH40-150-16B

two-phase stepperNEMA 14for industrial applications

Overview
The 35BHH40-150-16B is a 35 mm (NEMA 14) 2-phase hybrid stepper motor providing 0.255 N·m (2.6 kg·cm) holding torque in a 40 mm body. Rated at 1.5 A/phase, it is suited to precision motion control tasks in industrial automation, robotics and compact CNC applications. Recommended driver: CW215.

Key Highlights

• 2‑phase, 1.8° step angle — 0.255 N·m (2.6 kg·cm) holding torque
• Rated current 1.5 A/phase — 35 mm (NEMA 14) frame
• 40 mm body length, 5 mm shaft diameter, 4‑lead wiring

Summary Specifications
Phase — 2
Step Angle — 1.8° (± 5%)
Holding Torque — 0.255 N·m (2.6 kg·cm)
Rated Current — 1.5 A/Phase
Shaft Diameter — 5 mm
No. of Leads — 4
Body Length — 40 mm
Frame Size — 35 mm (NEMA 14)
Weight — 0.4 kg
Recommended Driver — CW215

Product Datasheet
Datasheet code shown on page: 35BHH40-150-16B (PDF available for download on the product page).

Illustrations
Includes mechanical drawing for the 35BH series and torque‑speed curve for the 35BH series.

Technical specifications

• Model: 35BHH40-150-16B (page reference)
• Frame Size: 35 mm (NEMA 14)
• Body Length: 40 mm
• Step Angle: 1.8° ± 5%
• No. of Phases: 2
• Holding Torque: 0.255 N·m (2.6 kg·cm)
• Rated Current: 1.5 A/Phase
• No. of Leads: 4
• Shaft Diameter: 5 mm
• Weight: 0.4 kg
• Recommended Driver: CW215
