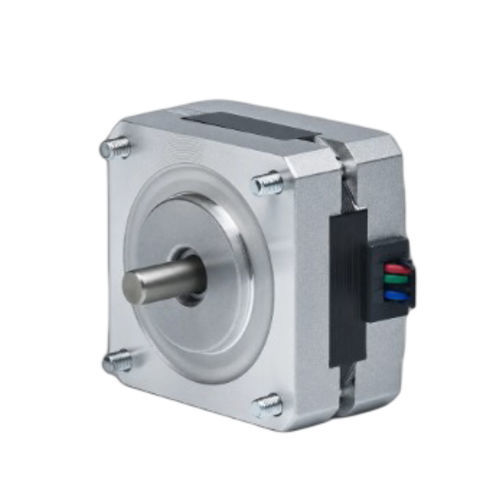

Two-phase stepper motor 39BHM26-02A-17

hybrid steppercompactsmall-size

Product Overview
The 39BHM26-02A-17 is a 39mm (NEMA 15) 2-phase hybrid stepper motor delivering 0.069 N·m (0.7 kg·cm) of holding torque in a 26 mm body. Rated at 0.2 A/phase, it is designed for precision motion control in compact industrial applications. Recommended driver: CW215.

Key Highlights

• 2‑Phase, 0.9° step angle — 0.069 N·m (0.7 kg·cm) holding torque
• Rated current: 0.2 A/Phase — 39 mm (NEMA 15) frame
• Compact 26 mm body length — 5 mm shaft diameter

Electrical Specifications
Step Angle: 0.9° ± 5%
Holding Torque: 0.069 N·m (0.7 kg·cm)
Rated Current: 0.2 A/Phase
No. of Phases: 2
No. of Leads: 4
Shaft Diameter: 5 mm
Frame Size: 39 mm (NEMA 15)
Body Length: 26 mm
Weight: 0.3 kg
Recommended Driver: CW215

Figures & Charts
Mechanical drawing and torque-speed curve available for the 39BH series for installation and performance reference.

Technical specifications

• Model: 39BHM26-02A-17
• Step Angle: 0.9° ± 5%
• Holding Torque: 0.0687–0.069 N·m (0.7 kg·cm)
• Rated Current: 0.2 A per phase
• Phases: 2
• No. of Leads: 4
• Shaft Diameter: 5 mm
• Frame Size: 39 mm (NEMA 15)
• Body Length: 26 mm
• Weight: 0.3 kg
• Recommended Driver: CW215
