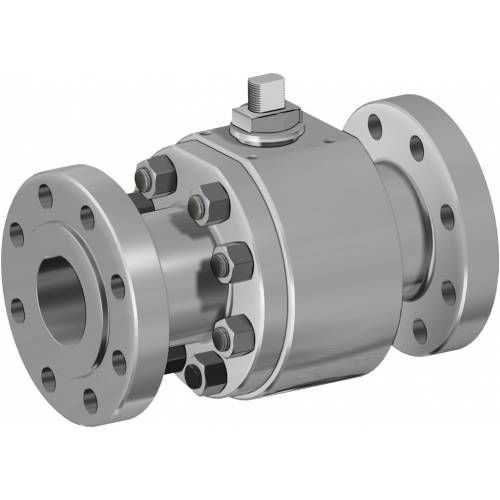

Floating ball valve THOR

leverfor oilpetroleum

Macro Ball valves Category Thor Subcategory Thor Split Body Family Thor Split Body PN 63-100 ANSI 600 STANDARD FEATURES • Floating ball, full bore. Available reduce bore version. • Soft-seat seal DEVLON • Standard for connecting flanges: ASME B16.5; EN1092-1 • Operating temperature see temperature pressure diagram • Pressure class: ANSI 600 / PN63-100 • Tightness Class: EN12266-1 rate A • Intercepted fluid: petrochemical products, self-lubricating fluids (liquid and gaseous), compatible with the constructive materials. For others application please contact our sales department. • Antistatic device EN12266-2 • Stem seal: TFM 1600 V-ring packing • Additional seal on stem with FKM O-ring • Anti Blow-out stem • Actuator connection as per standard ISO 5211 • Closing angle >7° FEATURES ON REQUEST • For other flange types please contact our sales department. • Sealing in: PTFE reinforced with glass (RPTFE-GF), PTFE reinforced with carbongraphite (RPTFE-CF). For other types of materials please contact our sales department • Mono-directional version with pressure-relief hole in the ball • Stainless steel lever • Stainless steel Stem nuts and springs • For special versions in materials different from the standard (body, ball, stem), please contact our sales department. • ATEX marking and certificate ON REQUEST
