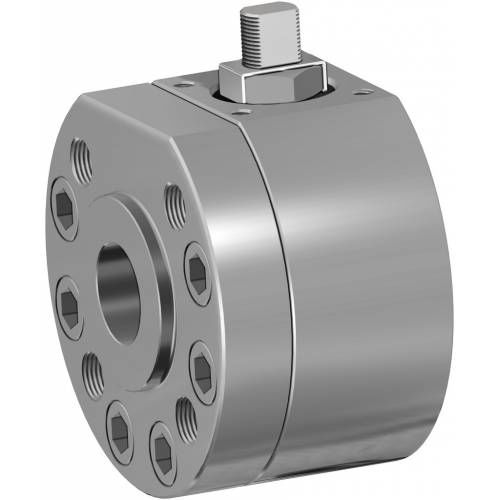

Floating ball valve MAGNUMleverfor waterfor gas
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever
- Media
- for water, for gas
- Body
- wafer, soft-seat, stainless steel
- Applications
- for the pharmaceutical industry, industrial, power line, for the chemical industry, for the food industry, for oil industry applications, for the gas industry, for water treatment, for the mining industry, for automobiles, for marine applications, for shipbuilding, for the paper industry, turbine, for machine tools
- Other characteristics
- ISO, standard, ANSI, ATEX
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 100 bar
(1,450.4 psi)Min.: 63 bar
(913.7 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -40 °C
(-40 °F)
Description
Macro Ball valves
Category Magnum
Subcategory Magnum Split Wafer
STANDARD FEATURES
• No protuding floating ball, full bore
• Soft-seat seal: DEVLON
• Standard for connecting flanges: EN 1092-1; ANSI B16.5
• Operating temperature see temperature pressure diagram
• Tightness Class: EN12266-1 rate A
• Intercepted fluid: petrochemical products, self-lubricating fluids (liquid and gaseous), compatible with the constructive materials. For others application please contact our sales department.
• Antistatic device EN12266-2
• Stem seal: TFM 1600 V-pack
• Additional seal on stem with FKM O-ring
• Anti Blow-out stem
• Actuator connection as per standard ISO 5211
• Closing angle >7°
FEATURES ON REQUEST
• For other flange types please contact our sales department.
• Sealing in: PTFE reinforced with glass (RPTFE-GF), PTFE reinforced with carbongraphite (RPTFE-CF). For other types of materials please contact our sales department
• Mono-directional version with pressure-relief hole in the ball
• Stainless steel lever
• Stainless steel Stem nuts and springs
• For versions in materials different from the standard (body, ball, stem), please contact our sales department.
• Marking and certificate ATEX ON REQUEST
