Floating ball valve MAGNUM
leverfor waterwafer

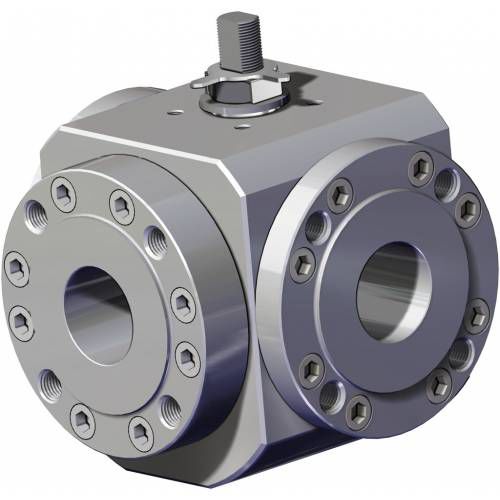

Floating ball valve - MAGNUM - OMAL Spa - lever / for water / wafer
Floating ball valve - MAGNUM - OMAL Spa - lever / for water / wafer
Floating ball valve - MAGNUM - OMAL Spa - lever / for water / wafer - image - 2
Floating ball valve - MAGNUM - OMAL Spa - lever / for water / wafer - image - 3
Floating ball valve - MAGNUM - OMAL Spa - lever / for water / wafer - image - 4
Floating ball valve - MAGNUM - OMAL Spa - lever / for water / wafer - image - 5
Add to favorites
Compare this product

Characteristics

Type
floating ball
Operation
lever
Media
for water
Body
wafer
Applications
for the chemical industry, industrial, for the food industry, for oil industry applications, for the pharmaceutical industry, for automobiles, for machine tools, for the gas industry, for the paper industry, wafer, for water treatment, for the mining industry, turbine, for marine applications, for shipbuilding, power line
Material
stainless steel
Number of channels
3-way
Other characteristics
ISO, standard, ANSI, ATEX
DN

Max.: 100 mm
(3.937 in)

Min.: 15 mm
(0.591 in)

Pressure

Max.: 40 bar
(580.2 psi)

Min.: 16 bar
(232.1 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Description

Macro Ball valves Category Magnum Subcategory Split Wafer 3 ways 4 seals EXECUTION ON REQUEST • For other flanges type please contact our sales department. • Sealing in: PTFE reinforced with glass (RPTFE-GF), PTFE reinforced with carbongraphite (RPTFE-CF). For other types of materials please contact our sales department. • Stainless steel lever • Stainless steel stem nuts and springs • For versions with materials (body/ball/stem) different from the standard please contact our sales department • ATEX marking and certificate ON REQUEST CERTIFICATIONS • In compliance with European Directive 2014/68/EU PED; Fugitive Emission ISO 15848 (ISO FE BH-C03-SSA 0); Ta-Luft VDI: 2440 • Safety integrity level up to SIL3 according to the IEC 61508 • In compliance with ATEX 2014/34/EU Directive , ATEX certificate ON REQUEST. ENGINEERING STANDARD • Body thickness in compliance with: ASME B16.34, ASME VIII div.1, EN12516 • Materials and rating in compliance with ASME B16.34 for ANSI valves and EN12516 for PN valves.
