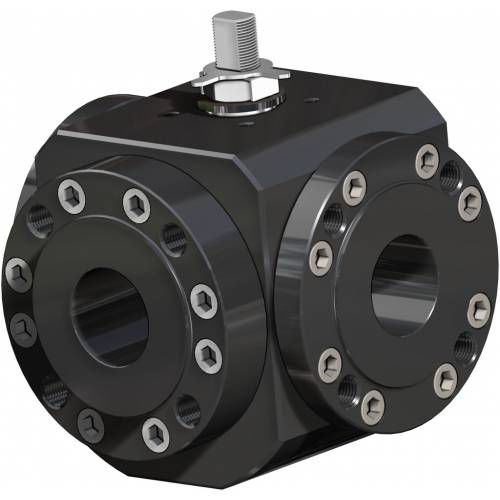

Floating ball valve Magnum

leverfor controlfor water

Greater precision in the alignment of axes due to a unique positioning in the process machining from raw material to finished valve Longer lifetime of the valve Less breakaway torque Valve body in carbon steel made with NACE certified material as standard Greater corrosion resistance Greater ductility of the material 100% in- house manufacturing process technology Maximum control and accuracy in all the stages of the manufacturing process Flexibility in supply quickly special executions requested by customers ATEX Certificate Installation is possible in a potential explosive environment TA LUFT fugitive emission Certificate High level of safety of the tightness towards the outside is granted PED Certificate Full compliance with European Safety Standards for Pressure Equipment UP to SIL 3 certified Guarantee of the high level of functional safety STANDARD FEATURES • Floating ball, full bore • Soft-seat seal TFM 1600 • Standard for connecting flanges: EN1092-1, ASME B16.5 • Tightness Class: EN12266-1 rate A • Intercepted fluid: air, water, gas, petroleum and petrochemical products, aggressive fluids. • Antistatic device EN12266-2 • Stem seal: TFM1600 V-pack • Additional seal on stem with FKM O-ring • Anti Blow-out stem • Actuator connection as per standard ISO 5211
