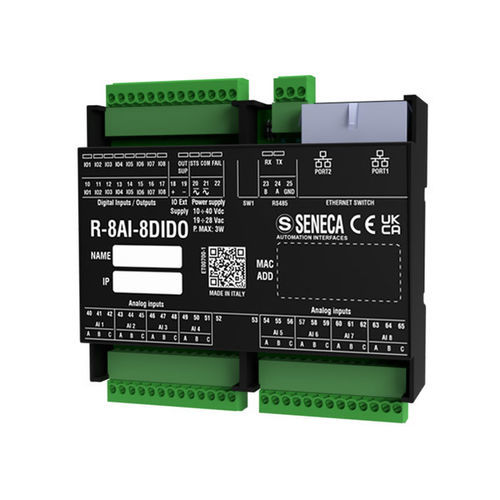

Analog I/O module R-8AI-8DIDO-2-P

digitalModbusProfiNet

Profinet IO module with 8 universal analog inputs and 8 digital input/output channels. The R-8AI-8DIDO Profinet digital mixed module is designed to meet the needs of flexible cabling, limited installation space, and high I/O density applications with integrated networking capabilities. With two 10/100 Mbps Ethernet ports, this module offers 8 analog inputs and 8 digital channels, each individually configurable as a digital input or output. Configuration is possible via a web server with HTML5 support or a DIP switch. The module can be connected in Ethernet daisy chain mode with fault bypass, ensuring the continuity of the Ethernet connection even if one module fails. Configuration is facilitated through software such as softPLC CODESYS and the TiA Portal/Simatic Step7 design environment. - Power Supply: 10..40 Vdc; 19..28 Vac - Max Consumption: 3 W - Max Isolation: 1.5 kVac - Status Indicators: Power supply, Input/Output status, STS (IP address/DHCP), Ethernet TRF/LNK - Protection Degree: IP20 - Operating temperature: -25..+65°C - Dimensions (WxHxD): 106 x 90 x 32 mm - Weight: 170 g - Housing: Pc/ABS material self-extinguishing UL94-V0, black color - Connections: 3.5mm pitch terminals, and double RJ45 connector - Mounting: On DIN EN 60715 rail, wall-mounted / panel-mounted - Programming: Integrated web server, DIP-switch - Special Features: Double Ethernet Daisy Chain connection, LAN fault bypass - Interfaces: 2x Ethernet ports (LAN fault-bypass) 100 baseT on RJ45 - 100 Mbps (TCP-IP) - Protocols: Profinet IO - Cable: CAT5 or CAT5e unshielded - ModBUS Communication: Up to 64 nodes without repeater, max speed 115 kbps - Analog Inputs: 8 channels, Voltage: -30 V to +30 V; -150 mV to +150 mV, Current: 0 to 24 mA, Thermocouple: J, K, T, E, N, R, S, B, L, Pt100 on AI1: -200°C to +650°C - Analog Input Update: 4 ms - Digital I/O: 8 channels, Inputs: ON >11V, OFF <4V, Vmax 28V, 9 kΩ; Outputs: MOSFET, PNP, max 0.2A, 9-28V - Digital I/O Update: 4 ms - Certifications: CE - Standards: EN61000-6-4, EN61000-6-2, EN61010-1
