Position indicator S315 series

voltagetemperaturepower

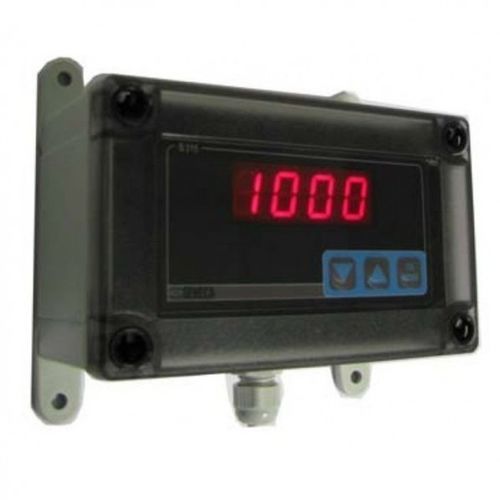

Product Overview: S315, the new indicator of the compact S-Series, is a loop powered, high-performance measurement device. The IP66 version, electrically isolated, with a transparent front door opening, provides high levels of functionality and safety in wet, dusty, aggressive, and extreme temperature environments. S315/IP66 reduces wiring and ensures easy installation in any position with external screws, cable included, and does not need to be integrated into a cabinet. It can be integrated into an existing facility for the acquisition of an analogue measurement and display in engineering units. Technical Data: - Order code: S315-IP66 - Description: 4 digit loop powered display with 4-20 mA input signal and IP66 case - Accuracy: Max error 0.05% - Resolution: Max 16 bit - Thermal drift: 0.005%/°K - Analog input: Current 4-20 mA - Power supply: By loop (max 30 V) - Voltage drop voltage: Max 7 V - Case: ABS, IP66, 130 x 80 x 60 mm - Standard: EN 50298, EN 60529, EN 62262, UL 94 HB, NEMA 1, 4, 4X, 6 Shipping and Export Information: - PRODUCT CODE: S315-IP66 - GROSS WEIGHT kg: 0.35 - ORIGIN: IT - CN (Combined Nomenclature): 90268020 - ECCN: 3A001 Key Features / Technical Specifications: - 4 digit loop powered display - 4-20 mA input signal - IP66 case for harsh environments - Electrically isolated - Transparent front door - Easy installation with external screws and included cable - Does not require cabinet integration - Can be retrofitted into existing facilities - High accuracy (max error 0.05%) - Max 16 bit resolution - Thermal drift: 0.005%/°K - Power supply by loop (max 30 V) - Voltage drop: max 7 V - ABS enclosure, 130 x 80 x 60 mm - Complies with EN 50298, EN 60529, EN 62262, UL 94 HB, NEMA 1, 4, 4X, 6 - Gross weight: 0.35 kg - Origin: Italy - Customs code: 90268020 - ECCN: 3A001
