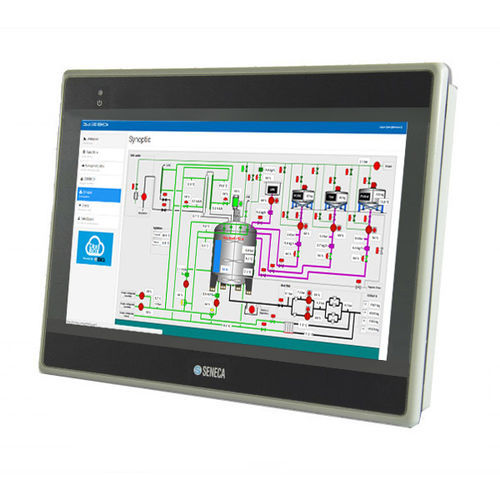

Resistive touch screen HMI VISUAL9Epanel-mount1024 x 600quad-core
Add to favorites
Compare this product
Characteristics
- Interface
- resistive touch screen
- Mounting
- panel-mount
- Resolution
- 1024 x 600
- Processor
- RISC, quad-core
- Screen type
- TFT LCD, LED backlight
- Protection level
- IP66
- Connectivity
- Ethernet, RS-232, RS-485, USB 2.0, WiFi
- Other characteristics
- fanless
- Applications
- industrial, CAN bus
- Screen size
10.1 in
Description
10" HMI panel touchscreen with Ethernet port, Wi-Fi, RS232, RS485
SENECA expands its offer for the Z-PC with VISUAL, the new range of operator panels suitable for the most common industrial controllers and supervisory/automation systems.
- Size: 10.1’ TFT
- Resolution: 1024x600
- Format: 16:9
- Brightness: 350 cd/m2
- Contrast: 500:1
- Retroillumination: LED, > 50,000 hours
- Colours: 16.7 million
- Touchscreen: 4-wire, resistive
- Precision: ±2%
COMMUNICATION
- USB Host 2.0: 1
- Ethernet 10/100: 1
- Ethernet 10/100/1000: 1
- RS232: 1
- RS485: 1
- CAN bus support: Yes
- Wi-Fi: Optional
GENERAL DATA
- Flash: 128 MB
- RAM: 128 MB
- Processor: Quad Core RISC
- RTC: Integrated
- Power supply: 24 Vdc
- Absorption: 1A@24Vdc
- Housing: Plastic
- Dimensions (lxhxp): 271 x 213 x 36.4 mm
- Hole dimensions: 260 x 202 mm
- Weight: 1200 g
- Operating temperature: 0..50°C
- Protection degree: UL Type4X / NEMA4 / IP66
- Fanless: Yes
- Certification: CE, UL
CONFIGURATION AND PROGRAMMING
- EASY BUILDER PRO: Yes
- EASY ACCESS: Optional
- Dashboard: Optional
- CODESYS: Optional
