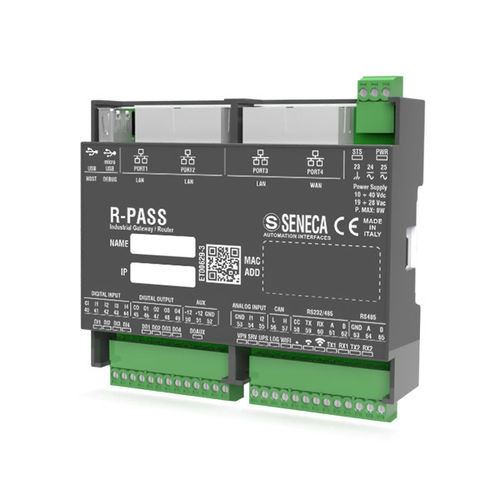

Remote control unit R-PASS series

temperatureenergy-saving

R-PASS-S Energy is a sophisticated IEC 61131-compliant control unit designed to natively integrate with SENECA LET'S remote assistance and remote control platform, optimized for Industry 4.0. This advanced CPU provides reliable and secure data management, combining the functionality of a PLC (Straton IDE development environment) with routing and remote access capabilities. It supports Point-To-Point connections for Remote Assistance and Single-LAN connections for Remote Control, offering maximum flexibility and ease of use. The R-PASS-S Energy controller allows the creation of client/server connectivity systems adaptable to different complexities and needs for simultaneous access to the plant or individual machines. Expandable via the R-COMM communication module with a 4G LTE modem/router, this device offers a complete and versatile solution for modern connectivity needs. With 4 Ethernet ports configurable as SWITCH or LAN/WAN, 3 serial ports, optional WiFi connectivity, and a USB port, R-PASS-S Energy supports a wide range of industrial protocols and protocols for Energy Management applications such as IEC 60870-101, IEC 60870-104, IEC 61850 (optional). The device integrates a powerful 32-bit ARM CPU, 1 GB Flash memory, 64 MB RAM, and a memory expansion slot with microSD support. Configuration is done intuitively via the Z-NET4 environment and the integrated web server. - Available versions: R-PASS-0-4-E, R-PASS-W-4-E Technical Specifications: - Power supply: 11..40 Vdc / 19..28 Vac - Max. absorption: 8 W - Battery / UPS: With the use of the R-COMM accessory - Max insulation: 1.5 kVac - LED status indicators: Power, Log, Status, Serial Communication, Ethernet Communication, VPN Connection, I/O Status, WiFi Communication (-W models) - Protection class: IP20 - Connections: 3.5 mm pitch removable terminal block, cable cross-section 1.5 mm² - Flash memory (data): ≥4 GB - RAM: 512 MB - I/O Channels: 4DI, 4DO, 2AI (mA,V) - Operating temperature: -25..+65 °C - Dimensions (wxhxd): 106 x 90 x 32 mm - Weight: 170 g approx. - Case: PCP / ABS material self-extinguishing UL94-V0, color black - Installation: For 35 mm DIN-rail IEC EN 60715, wall/panel - Certifications: CE, UKCA Communication: - Ethernet Ports: 4 Fast Ethernet 10/100Tx ports (RJ45) - Serial ports: 1 RS232 / RS485 port, max baud rate 115kbps; 2 RS485 ports, max baud rate 115kbps - USB ports: 1 USB host port on type A side connector; 1 micro USB port for debugging - CAN port: 1 CAN port (terminals) - Modem: Optional (R-COMM) - Satellite Receiver: Optional (R-COMM) - WiFi (-W models): Built-in 802.11 b/g/n, band 2.4 ÷2.4835GHz, max Output Power: 17dBm (50 mW), security WEP / WPA / WPA2 - Serial Protocols: ModBUS TCP-IP Server/Client, ModBUS RTU Master/Slave, FTP/FTPs Client, sFTP Server, HTTP/HTTPS server, SMTPs client, Samba - IoT Protocols: MQTT, MQTTs, OPC UA Server, https, http post - Energy protocols: IEC60870-101 Master / Slave, IEC60870-104 Client / Server, IEC61850 Client / Server - Connectivity: Max Client TCP-IP 50, Max ModBUS RTU/ASCII slave nodes 128 per port, Memory area 2,000 variables (tags) Working Mode: - Gateway Functionality: ModBUS / Ethernet Serial Gateway + passthrough, Gateway shared memory - Gateway with Tag, IIoT / Edge / MQTT Gateway - Routing: LAN router, 4G router (Optional R-COMM), Wi-Fi Router/Access Point (-W models), Advanced Router - Nat 1:1 & Static Router - Advanced Features: Datalogger, Telephone alarm unit, Remote Access VPN Unit, SoftPLC IEC 61131, Energy Controller IEC 60870/61850 - HMI: Widgets and Screens on Virtual HMI, Remote Display Security: - Authentication: username/pass - Permission management: Supervisor/operator/guest/ftp user - Encryption algorithm (data encryption): OpenVPN AES-256bit-CBC + Auth SHA256 bit or user selectable - Security protocols: OpenVPN, SSL, HTTPS Server, MQTT over SSL/TLS, TLS 1..2 or higher Settings: - Programming: Web Server, Z-NET, IDE Straton - Management tool: SDD (Seneca Discovery Device) VPN/IIoT: - VPN Management Software: OpenVPN, VPN Client Communicator - LET'S Support: Yes SoftPLC: - PLC Programming: IEC 61131-3 (Straton) - Nr.max. variables/tag PLC: 1000 - PLC program size: 2,048kB
