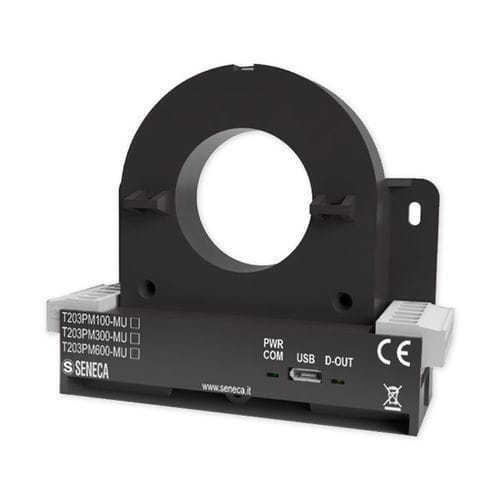

Frequency meter power meter T203PM600-MU

multimeterenergy meterwith power quality and harmonic analyzer

The T203PM600-MU is a single-phase AC/DC TRMS network analyzer equipped with a ModBUS interface, offering both analog and digital outputs. It supports current measurement ranges up to 600 A and voltage up to 290 Vac and 1000 Vdc. This device allows direct measurement of current and energy without the need for external CTs. It measures voltage, AC/DC current, active/reactive/apparent power, power factor, frequency, and harmonic distortion (THD), transmitting data via analog or digital outputs. The T203PM series can analyze up to the 21st harmonic and includes a digital contact for alarms or counters. Configuration is facilitated through the EASY SETUP 2 software and a Micro USB port. These power meters are robust, with an operating temperature range of -25 to +65°C, insulation up to 3 kVac, and safety class CAT. III 600V (bare conductor) and 1kV (insulated conductor). They can be mounted on a 35mm DIN-rail, wall-mounted, or suspended with cable ties. Integration into Ethernet networks is possible with Z-KEY/R-KEY gateways. Technical Specifications: - Power supply: 11 - 28 Vdc - Max absorption: < 70 mA @ 24 Vdc - Isolation: 3 kVac (on bare wires) - Status indicators: Power supply, USB communication, digital output - Installation category/overvoltage: CAT. III 600V (bare conductor), CAT. III 1kV (insulated conductor) - Frontal protection class: IP20 - Mounting: DIN 35mm IEC EN60715 rail, wall-mounted, suspended - Connections: 6-way removable screw terminals, 5 mm pitch - Micro USB: For programming and firmware upgrade - Operating temperature: -25..+65°C - Dimensions: 95 x 75 x 35 mm - Weight: 150 g - Case: PA6, black - Sampling time: 47,000 sps - Settling time RMS values: 500..1000 ms - Measured parameters: Voltage, AC/DC Current, Power, Power Factor, Frequency, THD - Harmonics: Up to 21st - Precision class: 0.5% f.s. @ 50/60 Hz - Serial interface: 1 x RS485 port - Protocol: ModBUS RTU - Distance: Up to 1,200 m - Connectivity: Max 32 nodes - Metering inputs: Voltage/Current up to 600 A or 290 Vac - Built-in I/O: 1DO, 1AO - Digital output: ACTIVE 0 - Vdc, max. load 50mA - Analog output: 0..10 Vdc, min load 2kΩ - Programming: EASY SETUP 2 - Certifications: CE - Standards: EN61000-6-4, EN61000-6-2, EN61010-1
