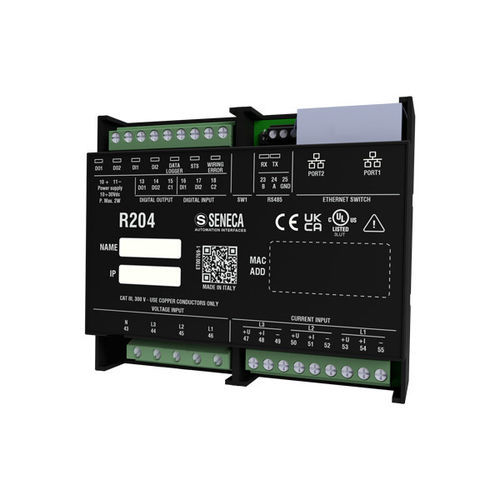

Energy meter power meter R204-2-L-E

digitalDIN railsingle-phase

Product Overview: The R204 is a versatile energy power meter with universal input, capable of handling a wide range of current measurement inputs. It can handle voltage-transduced currents, direct voltages, and Rogowski sensors with voltage output up to 333 mV. This instrument offers several insertion modes, including single-phase and three-phase 3/4-wire types, and is compatible with the Ethernet/IP protocol. Available with a 24 V power supply, it features a compact design with a depth of only 32 mm, allowing a daisy-chain connection with automatic fault-bypass protection. The power meter can provide voltage (0..10Vdc) and current (0/4..20mA) output signals. It also offers advanced functionality for measuring harmonics up to the 55th order for a better understanding of power quality. Technical Data: - Power Supply: 10..30 Vdc - Max Power Consumption: 2.8 W - Isolation: 3,500 Vac (to/from power circuits), 1,500 Vac (other circuits) - Status Indicators: Input/Output Status, IO Address Status, Wiring Error, Ethernet Transit/Data Connection - Installation category: 600 V CAT III - Programming: Web Server, DIP switch - Precision class: 0.2% for voltage/current; 0.5% for power - Flash memory: 8 MB - Network features: Dual Daisy Chain Ethernet Connection, LAN fault bypass - Energy features: No. 2 digital inputs @5kHz - Type of insertion / Connection mode: Single-phase, 3-phase 3-wire, 3-phase 4-wire, CT, CT with mV output, Rogowski transducers, Aron - Frontal Protection degree: IP20 - Mounting: DIN RAIL 35 mm guide - Connections: Screw terminals - Operating temperature: -25..+65 °C - Dimensions: 107x90x32 mm - Weight: 170 g - Case: PC/ABS self-extinguishing UL94-V0, black color - Standard: CE, UL Key Features / Technical Specifications: - Universal input for current measurement: voltage-transduced, direct voltage, Rogowski sensors (up to 333 mV) - Supports single-phase and three-phase (3/4-wire) insertion modes - Ethernet/IP protocol compatibility - 24 V power supply, compact 32 mm depth - Daisy-chain connection with automatic fault-bypass - Voltage (0..10Vdc) and current (0/4..20mA) output signals - Advanced harmonic measurement up to 55th order - Dual Ethernet ports, LAN fault bypass - DIN rail mounting, IP20 protection - Operating temperature: -25..+65 °C - CE and UL certified - Integrated digital inputs and outputs - Web server and DIP switch programming - Precision class: 0.2% (voltage/current), 0.5% (power) - Dimensions: 107x90x32 mm; Weight: 170 g
