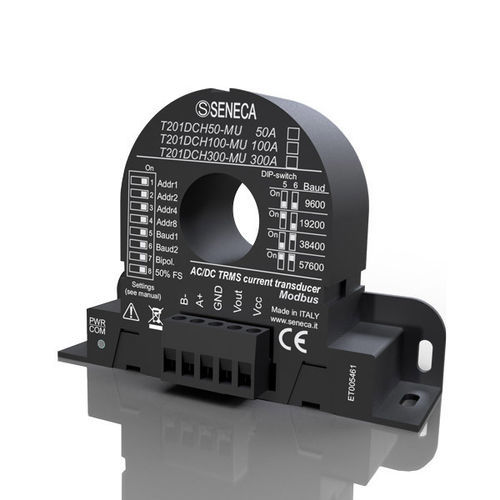

Hall effect current transducer T201DCH300-MU

DIN railDCAC

Product Overview: T201DCH300-MU is an isolated, contact-less direct and alternating TRMS current transducer with ModBUS interface, analog output/alarm output, and micro USB port. The device’s function and look are very similar to those of an active standard CT, but with the remarkable feature of measuring the continuous component of the pass-through current. For its electrical endurance, ease of use, and compact dimensions, T201DCH300-MU fits every kind of current measurement up to 300 Adc/Aac. - The product is supplied with DIN rail plastic clips. Technical Data: - Order code: T201DCH300-MU - Description: AC/DC contactless TRMS direct and alternate current (± 300 A) transducer, Hall Effect with ModBUS interface - Power Supply: 12..28 Vdc - Accuracy Class: 0.5 - Input Range: -300..+300 A ac/dc - Measurement Type: AC/DC TRMS or DC Bipolar - Output Range: 0..10 V - Settings: Via DIP switches or software EASY Setup - Dimension: 68 x 95 x 25 mm Shipping and Export Information: - Product Code: T201DCH300-MU - Gross Weight (kg): 0.2 - Origin: IT - CN (Combined Nomenclature): 85437090 - ECCN: EAR99 Key Features / Technical Specifications: - Isolated, contact-less direct and alternating TRMS current transducer - ModBUS interface, analog output / alarm output, micro USB port - Measures both AC and DC current up to ±300 A - Hall Effect technology - DIN rail mounting with included plastic clips - Power supply: 12..28 Vdc - Accuracy class: 0.5 - Output: 0..10 V - Settings via DIP switches or EASY Setup software - Compact dimensions: 68 x 95 x 25 mm - Gross weight: 0.2 kg - Origin: Italy - CN code: 85437090 - ECCN: EAR99
