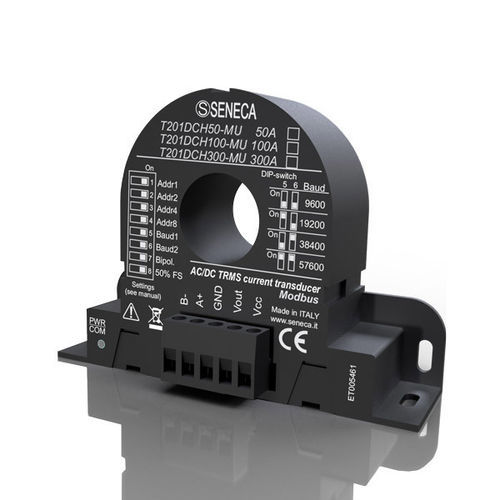

Hall effect current transducer T201DCH50-MU

DIN railDCAC

Product Description: T201DCH50-MU is an isolated, contact-less direct, and alternating TRMS current transducer with ModBUS interface, analog output/alarm output, and micro USB port. The device’s function and look are very similar to those of an active standard CT, but with the remarkable feature of measuring the continuous component of the pass-through current. For its electrical endurance, ease of use, and compact dimensions, T201DCH50-MU fits every kind of current measurement up to 50 Adc or 50 Aac. The product is supplied with DIN rail plastic clips. Technical Data: - Order code: T201DCH50-MU - Description: AC/DC contactless TRMS transducer, Hall Effect with 0..10V analog output/alarm output, microUSB and ModBUS interface - Power Supply: 12..28 Vdc - Accuracy class: 0.5 - Measure type: TRMS - Input Range: ±50 A RMS or ±25 Arms (settable via DIP switch or microUSB port) - Output Type: 0..10 Vdc (min load 2 kΩ)/alarm contact - Dimension: 68 x 95 x 25 mm (Ø 20.8 mm) Shipping and Export Information: - PRODUCT CODE: T201DCH50-MU - GROSS WEIGHT (kg): 0.22 - ORIGIN: IT - CN (Combined Nomenclature): 85437090 - ECCN: EAR99 Key Features / Technical Specifications: - Isolated, contactless AC/DC TRMS current transducer - Hall Effect technology - 0..10 V analog output and alarm output - Micro USB port for configuration - ModBUS interface - Measures up to ±50 A RMS or ±25 Arms (settable) - Accuracy class 0.5 - Power supply: 12..28 Vdc - Compact dimensions: 68 x 95 x 25 mm (Ø 20.8 mm) - Gross weight: 0.22 kg - Supplied with DIN rail plastic clips - Origin: Italy - CN code: 85437090 - ECCN: EAR99
