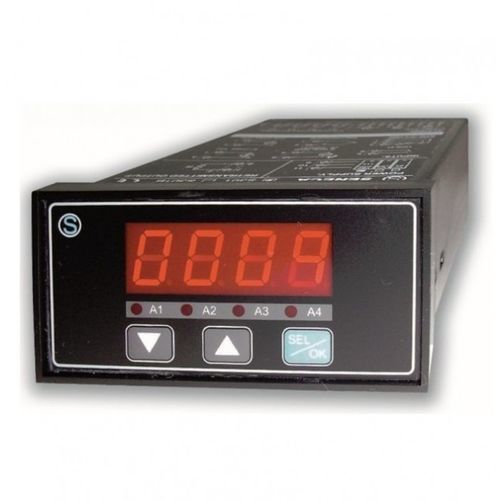

Current indicator S301 series

voltageuniversaldigital

The S301 is a programmable 4-digit digital indicator with 4 alarms and a universal input (voltage, current, thermocouples, PT100, potentiometer). It not only measures and displays the input variable in technical units but also offers retransmission of the displayed variable via an insulated analogue output. The device includes 4 programmable thresholds for various applications (optional). It features a hold function and peak value memory for maximum and minimum values. Available Versions: S301-1-R, S301-1-R-AOC-S, S301-1-R-AR-S, S301-23-R, S301-23-R-AOC-S, S301-23-R-AR-S Technical Data: - Order code: S301 - Description: 4-digit indicator with universal input and retransmitted output - Display: LED 4-digit - Input: V, mA, TC, Pt100, Ohm, with overvoltage and overcurrent protection - Contact input: hold function - Output: mA, V retransmitted, galvanically isolated - Alarms: 3 SPDT relay alarms / 4 open collector alarms (optional board) - Interface: RS232 / RS485 (optional) - Dimensions: 96x48x148 mm (S301); 96x96x148 (S301B) - Power supply: 115-230 Vac; 24 Vac/dc Shipping and Export Information: - PRODUCT CODE: S301-1-R - GROSS WEIGHT (kg): 0.47 - ORIGIN: IT - CN (Combined Nomenclature): 90268020 - ECCN: 3A001 Key Features / Technical Specifications: - 4-digit LED display - Universal input: voltage, current, thermocouples, PT100, potentiometer, Ohm - Overvoltage and overcurrent protection on input - Retransmitted output: mA, V, galvanically isolated - 3 SPDT relay alarms or 4 open collector alarms (optional) - RS232/RS485 communication interface (optional) - Hold function and peak value memory (max/min) - Power supply: 115-230 Vac or 24 Vac/dc - Dimensions: 96x48x148 mm (S301); 96x96x148 mm (S301B) - Gross weight: 0.47 kg - Origin: Italy - CN code: 90268020 - ECCN: 3A001
