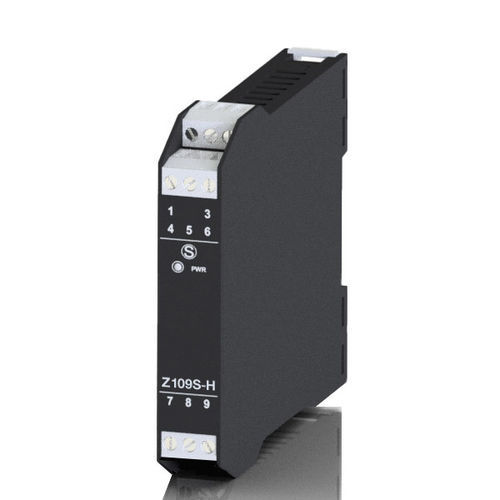

Current signal isolator Z109S-H

power4-20mAanalog output

Product Description: Z109S-H is a galvanically isolated power supply for current loops, with selectable input between 0-20 mA and 4-20 mA and power supply at 90..264 Vac @50-60Hz. The Z109S-H model provides stabilized 20 Vdc power for 2-wire sensors, with a maximum current of 20 mA and protection against short circuits. The measurement and retransmission of the isolated analog output can be set to 0-20 mA or 4-20 mA. In addition, the Z109S-H is equipped with front indicators to show when power is present and offers three-point isolation up to 3,500 Vac. Technical Data: - Description: DC current isolator - Input: Current 0..20, 4..20 mA, 20Vdc stabilized loop supply, input impedance 20 Ω - Output: Current 0..20, 4..20 mA - Response Time: <200 μs, cutoff frequency (-3dB) 6kHz - Precision: 0.2% - Power supply: 90..264 Vac; 50 ÷ 60 Hz; - Sensors supply: 2 wires, 20 Vdc stabilized, 20 mA max protected against short circuit - Insulation: up to 3,500 Vac Shipping and Export Information: - PRODUCT CODE: Z109S-H - GROSS WEIGHT (kg): 0.16 - ORIGIN: IT - CN (Combined Nomenclature): 85437090 - ECCN: EAR99 Key Features: - Galvanically isolated power supply for current loops - Selectable input: 0-20 mA or 4-20 mA - Power supply: 90..264 Vac @50-60Hz - Stabilized 20 Vdc power for 2-wire sensors (max 20 mA, short circuit protected) - Isolated analog output: 0-20 mA or 4-20 mA - Front indicators for power presence - Three-point isolation up to 3,500 Vac - Input impedance: 20 Ω - Response time: <200 μs, cutoff frequency (-3dB) 6kHz - Precision: 0.2% - Gross weight: 0.16 kg - Origin: Italy - CN code: 85437090 - ECCN: EAR99
