Energy meter power meter R203-2 series

analogdigitalDIN rail

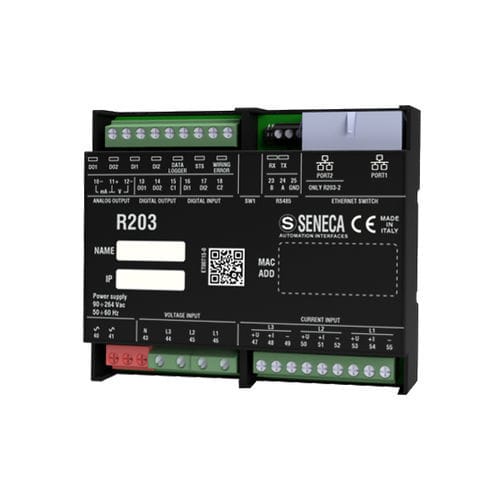

The R203 OPC UA three-phase network analyzer is designed to accept current measurement inputs via current transformers (CTs) with current or voltage output, voltage transformers (VTs), and Rogowski sensors with voltage output up to 333 mV. It supports various insertion types, including single-phase, three-phase 3/4-wire, and Aron, and is compatible with the OPC UA Server protocol (switchable to Modbus, Profinet, or Ethernet/IP thanks to SENECA FLEX technology). The Ethernet interface enables daisy chaining to the next Ethernet device, avoiding the use of expensive industrial switches and simplifying wiring. The R203 OPC UA returns single-phase and three-phase values of the main electrical quantities: voltage, current, power and active, reactive, apparent, frequency, period, and power factor. The configurable analog output in voltage or current also allows the analyzer to be used as a measurement converter. R203 OPC UA also offers measurement and recording of harmonics in voltage and current up to 55th order with THD (total harmonic distortion) calculation. This versatile solution is ideal for monitoring and analyzing the performance of electrical networks, as well as converting measurement signals for industrial control and automation systems. Technical Specifications: - Power Supply: 10..30 Vdc (R203-2-L-U), 90..264 Vac (50-60 Hz) (R203-2-H-U) - Max Power Consumption: 2.8 W - Isolation: 3,500 Vac (to/from power circuits), 1,500 Vac (other circuits) - Status Indicators: Input/Output Status, IO Address Status, Wiring Error, Ethernet Transit/Data Connection - Installation category: 600 V CAT III - Programming: Web Server, DIP switch - Precision class: 0.2% for voltage/current; 0.5% for power - Flash memory: 8 MB - Network features: Dual Daisy Chain Ethernet Connection, LAN fault bypass - Energy features: No. 2 digital inputs @5kHz - Type of insertion / Connection mode: Single-phase, 3-phase 3-wire, 3-phase 4-wire, CT, CT with mV output, Rogowski transducers, Aron - Frontal Protection degree: IP20 - Mounting: DIN RAIL 35 mm guide - Connections: Screw terminals - Operating temperature: -25..+65 °C - Dimensions: 107x90x32 mm - Weight: 170 g - Case: PC/ABS self-extinguishing UL94-V0, black color Voltage/current inputs: - Phase voltage measurement: Voltage: up to 600 Vac, freq. 45 ÷ 65 Hz; VT with output up to 600 Vac concerning neutral - Phase current measurement: AT with output 1-5 A f.s.; AT with output mV or Rogowski up to 250 mV Integrated I/Os: - Digital inputs: Nr.2 activatable with voltage from 12 to 24V with digital counter @5 kHz - Digital outputs: Nr.2 capacity Imax = 50 mA Vmax = 28V - Analog outputs: Nr.1 settable: in VOLTAGE 0..10 Vdc, min load resistance 2kΩ or in CURRENT 0..20, 4..20 mA, max load resistance 500Ω; Transmission error: 0.1% of max range; Thermal drift: 100 ppm/K COMMUNICATION: - Ports: Nr.2 Ethernet Ports 100 Mbps - Protocol: OPC UA server - Connections: Ethernet switch with Daisy Chain protection Available versions: R203-2-H-U, R203-2-L-U Accessories (examples): - CE-RJ45-RJ45-R | Ethernet cable (right) ( RJ45 / RJ45 ) - RC150 | Rogowski Coil, output 100 mV/kA @ 50 Hz, coil Ø 80..580 mm - RC190 | Rogowski Coil, output 333 mV/kA @ 50Hz, coil Ø 100..580 mm - TAA-2030, TAA-5080, TAA-8080 | Split core current transformers - TAC-0000, TAC-3010, TAC-4010 | Primary wound and through-bar current transformers Certifications: - REACH and ROHS declarations - Customs codes
