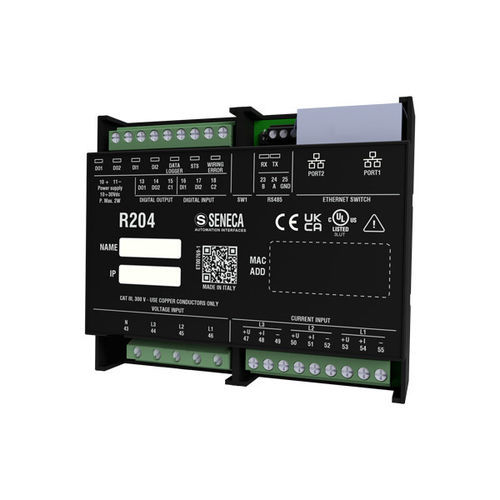

Energy meter power meter R204-2-L

digitalDIN railsingle-phase

Product Overview:R204 is an extremely versatile Universal Input Energy power meter with UL certification and a wide range of current measurement inputs. It can handle voltage-transduced currents, direct voltages, and Rogowski sensors with voltage output up to 333 mV. This instrument offers multiple insertion modes, including single-phase and three-phase 3/4-wire types. It is fully compatible with a range of communication protocols, including ModBUS RTU, ModBUS TCP-IP, and Peer-To-Peer.The module features a compact design with a depth of only 32 mm, enabling daisy-chain connection with automatic fault-bypass protection. The power meter provides voltage (0-10Vdc) and current (0-4-20mA) output signals. In addition, it offers advanced capabilities for measuring and recording harmonics up to the 55th order, with THD (total harmonic distortion) calculation, enabling a complete understanding of power quality.This device also performs the function of a Web Server and datalogger, allowing users to easily access key parameters and access data efficiently. The user also has the option of transferring data via FTP.Universal Input: Each device can be configured to accept single-phase, three-phase, TA, and TA with mV or Rogowski sensor inputs as required.MQTT and HTTP POST Supported: Integrating advanced protocols, it offers instant access to real-time energy data wherever you are.8MB Data Memory: Equipped with enhanced memory for data/event storage, harmonics up to 55°A and THD, ideal for system analysis and optimization.Maximum Flexibility: Also in the choice of power supply and Ethernet ports through which R204 offers ModBUS TCP-IP / ModBUS RTU gateway functions.Digital I/O Channels: Features 2 digital outputs and 2 independent inputs with 32-bit meters for active, reactive, and apparent energy metering.With the R204 power meter, you get a reliable and versatile tool for monitoring and managing your power grid.Technical Specifications:Power Supply: 10..30 VdcMax Power Consumption: 2.8 WIsolation: 3,500 Vac (to/from power circuits); 1,500 Vac (other circuits)Status Indicators: Power supply, digital channels, RS485 communication, data logger status, wiring error, Ethernet ports activityInstallation category: 600 V CAT IIIProgramming: via Web Server. Through the SDD software, it is possible to locate the device and easily access it.Precision class: 0.2% for voltage/current; 0.5% for powerFlash memory: 8 MBNetwork Features: Dual Daisy Chain Ethernet Connection; LAN fault bypass; Max 32 Peer-to-Peer Rules (I/O Mirror) - No Master required; ModBUS Passthrough (TCP-IP to RS485); Identification and configuration IP, MAC, and Firmware via SDD toolEnergy Features: Energy metering (on output digital output) No. 2 incremental counters 32 bits on digital inputs @5kHzType of insertion / Connection mode: Single-phase, 3-phase 3-wire, 3-phase 4-wire, CT, CT with mV output, Rogowski transducers, AronFrontal Protection degree: IP20Mounting: DIN RAIL 35 mm guideConnections: Screw terminalsOperating temperature: -25..+65 °CDimensions: 107x90x32 mmWeight: 170 gCase: PC/ABS self-extinguishing UL94-V0, black colorStandard: CE, ULVoltage/current inputs:Phase voltage measurement: Voltage up to 600 Vac, freq. 45 ÷ 65 Hz; VT with output up to 600 Vac concerning neutralPhase current measurement: AT with output 1-5 A f.s.; AT with output mV or Rogowski up to 250 mVIntegrated I/Os:Digital inputs: Nr.2 activatable with voltage from 12 to 24V and 2 digital counters @ 50 HzDigital outputs: Nr.2 capacity Imax = 50 mA Vmax = 28VCOMMUNICATIONSerial: 1x RS485 port, Protocol: ModBUS RTU, Distance: Up to 1,200 m, Connectivity: Max 128 nodesEthernet: 2x Ethernet Ports 100 Mbps, Protocol: ModBUS TCP-IP, MQTT, HTTP POST, P2P, FTP, Connections: Ethernet switch with Daisy Chain protectionAvailable versions: R204-2-LAccessories (examples): Ethernet cable (RJ45/RJ45), Rogowski Coils (RC150, RC190), Split core current transformers (TAA-2030, TAA-5080, TAA-8080), Primary wound current transformer (TAC-0000), Through-bar current transformers (TAC-3010, TAC-4010)
