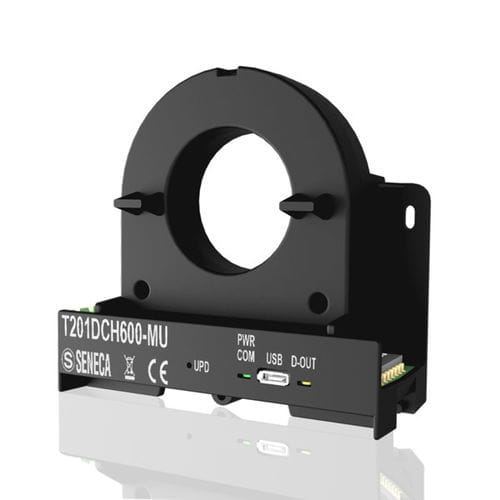

Hall effect current transducer T201DCH600-MU

DCACanalog

Product Overview: T201DCH600-MU is an isolated, contact-less direct and alternating TRMS current transducer with ModBUS interface, analog output/alarm output, and micro USB port. The device’s function and look are very similar to those of an active standard CT, but with the remarkable feature of measuring the continuous component of the pass-through current. For its electrical endurance, ease of use, and compact dimensions, T201DCH600-MU fits every kind of current measurement up to 600 Adc/Aac. Technical Data: - Order code: T201DCH600-MU - Description: AC/DC contactless TRMS direct and alternate current (± 600 A) transducer, Hall Effect with 0..10V analog output/alarm output, microUSB and ModBUS interface - Power Supply: 12..28 Vdc - Accuracy Class: 0.5 - Input Range: -600..+600 A ac/dc - Measurement Type: AC/DC TRMS or DC Bipolar - Output channels: 1AO 0..10 V, 1DO alarm output - Dimension: 75 x 95 x 35 mm (Ø 35 mm) - Settings: Via DIP switches or software EASY Setup Shipping and Export Information: - PRODUCT CODE: T201DCH600-MU - GROSS WEIGHT kg: 0.18 - ORIGIN: IT - CN (Combined Nomenclature): 85437090 - ECCN: EAR99 Key Features / Technical Specifications: - Isolated, contactless direct and alternating TRMS current transducer - ModBUS interface, analog output/alarm output, micro USB port - Measures both AC and DC current up to ±600 A - Hall Effect technology - 0..10V analog output - Alarm output (digital) - Power supply: 12..28 Vdc - Accuracy class: 0.5 - Compact dimensions: 75 x 95 x 35 mm (Ø 35 mm) - Settings via DIP switches or EASY Setup software - Gross weight: 0.18 kg - Origin: Italy - CN code: 85437090 - ECCN: EAR99
