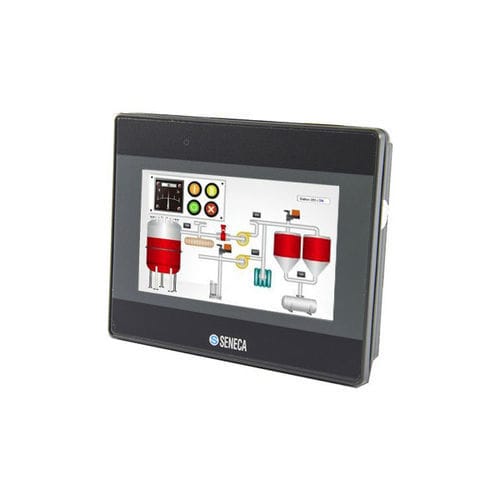

Resistive touch screen HMI VISUAL1E

panel-mount480 x 272dual-core

Product Overview: SENECA expands its offer for the Z-PC Series, the distributed I/O system launched on the market in 2000, with VISUAL, the new range of scalable and robust operator panels suitable for all kinds of industrial applications. The terminals can be combined with the most popular industrial controllers and other supervisory and automation systems. Short Description: 4.3" HMI panel touchscreen with ethernet port Technical Data: - Size: 4.3’ TFT LCD - Resolution: 480x272 - Format: 16:9 - Brightness: 400 cd/m² - Contrast: 500:1 - Retroillumination: LED > 30,000 hours - Colours: 16.7 million - Touchscreen: 4 wires, resistive - Precision: ±2% COMMUNICATION - USB Host 2.0: 1 - Ethernet 10/100: 1 - RS232/RS485: 1 GENERAL DATA - Flash: 256MB - RAM: 128MB - Processor: Dual Core RISC - RTC: Integrated - Power supply: 24 Vdc - Absorption: 350 mA @ 24 Vdc - Casing: Plastic - Dimensions (lxhxp): 128 x102 x 32 mm - Hole dimensions: 119x93 mm - Weight: 250 g - Operating temperature: 0..55°C - Grade of protection: NEMA4 / IP65 - Fanless: Yes - Certification: CE CONFIGURATION AND PROGRAMMING - EASY BUILDER PRO: Yes - EASY ACCESS: Yes Shipping and Export Information: - PRODUCT CODE: VISUAL1E - GROSS WEIGHT (kg): 0.62 - ORIGIN: TW - CN (Combined Nomenclature): 85312040 - ECCN: 4A994 Mandatory accessory: - CS-DB9F-TIP-V - Serial cable RS485 (DB9F / tips) for connection with operator panels VISUAL1/2/3 - CE-RJ45-RJ45-R | PM001450 - Ethernet cable (right) (RJ45 / RJ45)
