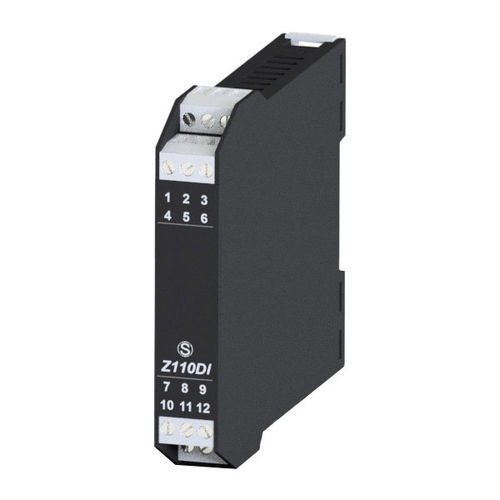

Galvanic signal isolator Z110DI

currentloop-powered4-20mA

Product Description: Z110DI is a self-powered galvanic current loop isolator. It accepts 4-20 mA current signals and measures and retransmits them on an isolated analog output, with a 4-20 mA current output. Z110DI ensures 3,000 Vrms isolation between input and output and between channels. Technical Data: - Power supply: Self-powered from input loop - Isolation: 3,000 Vrms - Degree of protection: IP20 - Response time: < 1ms - Accuracy class: Er% = 0.025 X (RL/100) + 0.025 (Referred to nominal range) - Thermal drift: <10ppm - Operating temperature: -25..+70°C - Dimensions: 17.5 x 100 x 112 mm - Connections: Removable screw terminals - Housing: PA6, black color - Mounting: 35 mm DIN rail (IEC/EN 60715) - Weight: 100 g - Certifications: CE, UKCA INPUT DATA: - Channels: 2 - Type: Nominal current: 4 ÷ 20 mA Operating current: 0.1÷ 25 mA Voltage drop at 20mA < 2 V; Max. voltage 30V Passband <100Hz Minimum current 10µA OUTPUT DATA: - Channels: 2 - Type: Impressed current 4 ÷ 20 mA Max. load resistance: 1400 Ω; Max. voltage 30V Shipping and Export Information: - PRODUCT CODE: Z110DI - GROSS WEIGHT (kg): 0.16 - ORIGIN: IT - CN (Combined Nomenclature): 85437090 - ECCN: EAR99 Key Features / Technical Specifications: - Self-powered from input loop - 3,000 Vrms isolation between input/output and between channels - Degree of protection: IP20 - Response time: < 1ms - Accuracy: Er% = 0.025 X (RL/100) + 0.025 - Thermal drift: <10ppm - Operating temperature: -25..+70°C - Dimensions: 17.5 x 100 x 112 mm - Removable screw terminals - Housing: PA6, black color - Mounting: 35 mm DIN rail (IEC/EN 60715) - Weight: 100 g - Certifications: CE, UKCA - Input: 2 channels, 4-20 mA nominal, 0.1-25 mA operating, voltage drop at 20mA <2V, max voltage 30V, passband <100Hz, min current 10µA - Output: 2 channels, 4-20 mA, max load resistance 1400 Ω, max voltage 30V
