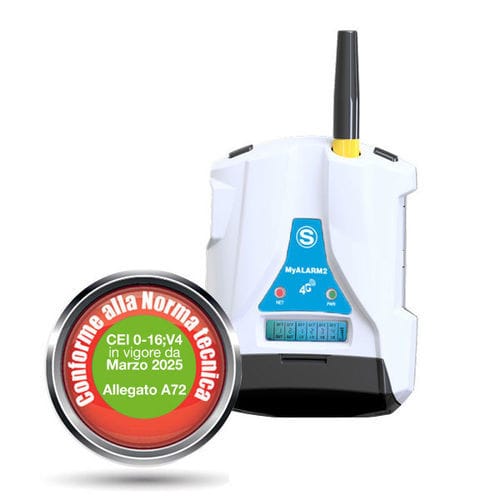

Protection system MY2CEI-4G series

Product Overview: The MyALARM2 CEI 4G is a 4G/LTE unit designed for interface protection systems, enabling network operators to remotely disconnect or reconnect systems by sending coded SMS messages. Compatible with LTE/4G and GSM networks, it receives and interprets operator messages for network management and confirms status changes via coded SMS. Compliance: The device complies with CEI 0-16;V4 (March 2025) norm and Terna annex A72. Available Versions: MY2CEI-4G-0-220, MY2CEI-4G-A-220, MY2CEI-4G-0-24, MY2CEI-4G-A-24 Technical Data: - Power supply: 5..15 Vdc @ 500 mA (Additional power supply range 24 Vdc and 220 Vac via power supplies/transformers supplied) - Max power consumption: 3.5 W (max) - Rechargeable battery: Lithium polymer 3.7 V - 1000 mAh, rechargeable, autonomy up to 8 hours (without auxiliary relay) - Status indicators: Power supply, 4G/LTE coverage, Device status - Display: LCD 128 x 32 Dots, Visible area 39 mm x 8.6 mm - SIM slot: Push-Push for mini SIM (15 x 25 mm) - Supported SIMs: Mini SIMs - SD support: Push-pull Micro SD slot, HC card support up to 32 GB - Degree of protection: IP20 - Modem / Router: LTE-FDD B1/B3/B5/B7/B8/B20, GSM/GPRS/EDGE 900/1800 MHz - Internal temperature sensor: Nr.1 NTC thermistor - Antenna: Nr.1 4G/LTE antenna, replaceable on SMA connector - Connections: Removable spring terminals, 3.5 mm pitch; SMA connector for 4G/LTE antenna; Micro USB port for configuration and power supply - Operating Temperature: -10..+55°C - Storage Temperature: -20..+85°C - Humidity: 30..90% @40°C non-condensing - Dimensions: 80 x 105 x 30 mm - Weight: 150 g - Installation: DIN rail or wall mount - Housing: ABS polycarbonate - Includes: Mains power adapter for terminal connection, support bracket, 2 screws, 2 wall plugs, 4G/LTE antenna, installation manual, USB cable - Certifications: CE - Standards: ETSI EN 301 489-7, EN 301489-1, EN 301489-7, EN 301511, IEC/EN 60950, CEI-0-16 (Annex M) Functions and Settings: - Basic configuration: Software (EASY CEI 4G): SMS, users, PIN, POD, inputs, outputs, debug - Firmware update: Via software or microSD card - Alarm management: SMS - Address Book: 20 phone numbers - Commands: Hooking, Unhooking Input Data: - Channels / Type: Nr.4 PNP Digital Inputs: OFF Threshold: 0 - 2 Vdc, I 3 mA Output Data: - Channels / Type: Nr.2 SPST 3 A / 240 Vac relay outputs Nr.1 analog voltage output +12 V @ 50 mA (max) Accessories (examples): - A-GSM: External multi-band antenna with cable length 3 m and male SMA connection - MY2-KITIP66: ABS IP66 Kit for fast field installation - ALIM-MY2: Power supply (spare part) for MyALARM series devices - MY2-CONV24-12: DC-DC CONVERTER 24Vdc -> 12Vdc - ANTENNA-ST-4G: 2G/4G antenna (spare part) for MyALARM and B-ALARM products Characteristics / Technical Specifications (summary): - 4G/LTE and GSM network compatibility - Remote disconnect/reconnect via coded SMS - CEI 0-16;V4 (March 2025) and Terna annex A72 compliant - DIN rail or wall mounting - LCD display for status - Mini SIM and Micro SD support - IP20 protection - Operating temperature: -10..+55°C - Relay and analog outputs - CE certified
