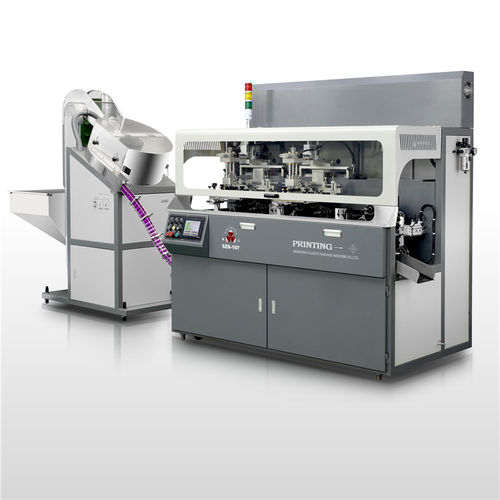

Fully-automatic screen printing machine SZD-1072-color3-color4-color
Add to favorites
Compare this product
Characteristics
- Control
- fully-automatic
- Number of colors
- 2-color, 3-color, 4-color, 5-color, multi-color
- Applications
- for plastic bottles, for plastic caps, for plastic tubes
- Other characteristics
- compact, with UV curing system, high-quality, for caps, high-speed, programmable, for rigid materials, for cylindrical products, with touchscreen, high-performance, universal, with hot stamping system, multi-function
- Printing speed
Min.: 2,400 p/min
Max.: 3,000 p/min
50 p/min
Description
SZD-107 Fully Automatic Chain-Type Multi-color Decorating System 1-5 color UV screen printing machine for jars pens marker tubes
The SZD-107 is a fully automatic, chain-type multi-color printing and hot stamping machine, engineered for high-precision decoration on small cylindrical surfaces without registration lugs. It seamlessly integrates screen printing and foil stamping in one flexible platform, ideal for applying 2 to 5 colors and metallic finishes on products such as wine caps, vodka closures, pen sleeves, small perfume bottles, jars, and lipstick cases. This system combines versatility with precision, designed to meet diverse and demanding finishing requirements.
Technical Specifications
The SZD-107 is a fully automatic, chain-type multi-color printing and hot stamping machine, engineered for high-precision decoration on small cylindrical surfaces without registration lugs. It seamlessly integrates screen printing and foil stamping in one flexible platform, ideal for applying 2 to 5 colors and metallic finishes on products such as wine caps, vodka closures, pen sleeves, small perfume bottles, jars, and lipstick cases. This system combines versatility with precision, designed to meet diverse and demanding finishing requirements.
Technical Specifications
- Process Capability: 2–5 color screen printing & hot stamping
- Printing Area: Diameter 15–34 mm | Length 20–70 mm
- Power Supply: 380V AC, 3-Phase, 50/60Hz
- Air Supply: 6–7 bar
- Total Power: 35 kW
- Integrated Multi-Process Platform: Performs both multi-color printing and hot stamping in a single, automated cycle.
- Precision for Lug-Free Designs: Specialized for accurate registration on cylindrical objects without alignment lugs.
- Assured Quality & Efficiency: Features automatic flame treatment for superior adhesion and a No Part, No Print (NPNP) function to prevent waste.
- Reliable Control System: Operated by an imported PLC and intuitive HMI for stable performance and easy operation.
- Exceptional Flexibility: Easily adapts between various small-diameter products and complex color/foil applications.
