Servo-driven screen printer SZD‑103‑S
monochromefor the plastics industryfor plastic tubes

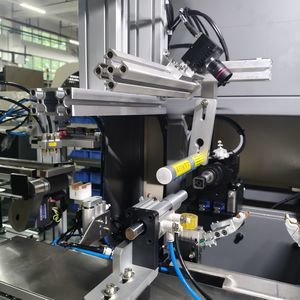

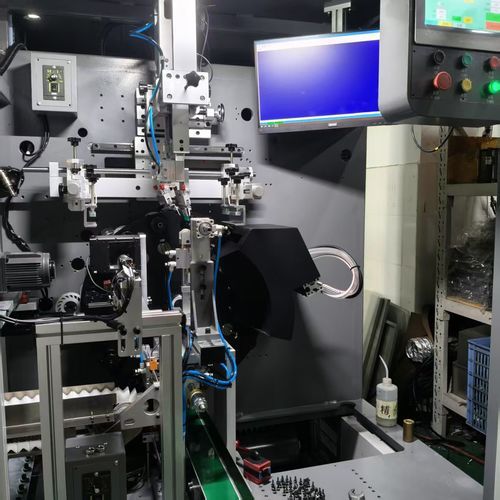

Servo-driven screen printer - SZD‑103‑S - Shenzhen xinzhong plastic - monochrome / for the plastics industry / for plastic tubes
Servo-driven screen printer - SZD‑103‑S - Shenzhen xinzhong plastic - monochrome / for the plastics industry / for plastic tubes
Servo-driven screen printer - SZD‑103‑S - Shenzhen xinzhong plastic - monochrome / for the plastics industry / for plastic tubes - image - 2
Servo-driven screen printer - SZD‑103‑S - Shenzhen xinzhong plastic - monochrome / for the plastics industry / for plastic tubes - image - 3
Add to favorites
Compare this product
Go to the Shenzhen xinzhong plastic website for more information

Characteristics

Control
servo-driven
Number of colors
monochrome
Applications
for the plastics industry, for plastic caps, for plastic tubes
Other characteristics
for cylindrical products, high-speed, high-accuracy, with UV curing system, with touchscreen, servo-driven, high-throughput, with electronic control, energy-efficient
Printing speed

Max.: 5,000 p/h

Min.: 4,000 p/h

Description

Overview
The SZD‑103‑S is a fully servo‑driven single‑color screen printing machine designed for precise printing on cylindrical parts such as syringes, pharmaceutical closures and cosmetic tubes. Full servo control ensures accurate registration, high repeatability and stable production speeds. An optional vision positioning system and plasma pretreatment are available for strict alignment and adhesion requirements.

Technical Data
Model: SZD‑103‑S
Printing Speed: 4,000 – 5,000 pcs/hr
Printing Diameter: 15 – 60 mm
Printing Length: 25 – 200 mm
Air Pressure: 6 – 8 Bar
Gas Pressure (for flame): 1.5 Bar
Curing: UV / LED
Number of Stations: 8
Dimensions (L×W×H): 2800 × 2600 × 2900 mm

Key Features
  • Fully servo‑driven axes for high‑speed motion and precise registration
  • Automatic loading & unloading system to enable continuous operation
  • Built‑in flame surface pretreatment and optional plasma treatment to improve ink adhesion on plastics and metals
  • UV/LED curing for fast, energy‑efficient drying
  • Panasonic PLC with touchscreen HMI for intuitive control and diagnostics
  • Quick changeover with interchangeable jigs to accommodate different product sizes
  • Optional vision positioning system for precise alignment on high‑tolerance parts


Core Advantages
  • Consistent print quality across long production runs
  • High throughput while preserving fine detail
  • Compatibility with a wide range of substrates and coatings
  • Operator‑friendly interface and reduced setup times


Typical Applications
  • Syringes and medical cylindrical components
  • Pharmaceutical and cosmetic closures (caps, lids)
  • Cosmetic jars, lipstick cases and tubular packaging
  • Bottle caps and small cylindrical accessories


Specifications
  • Model: SZD‑103‑S
  • Printing Speed: 4,000 – 5,000 pcs/hr
  • Printing Diameter: 15 – 60 mm
  • Printing Length: 25 – 200 mm
  • Air Pressure: 6 – 8 Bar
  • Gas Pressure (for flame): 1.5 Bar
  • Curing: UV / LED
  • Number of Stations: 8
  • Control: Panasonic PLC with touchscreen HMI
  • Options: Vision positioning system, plasma treatment
