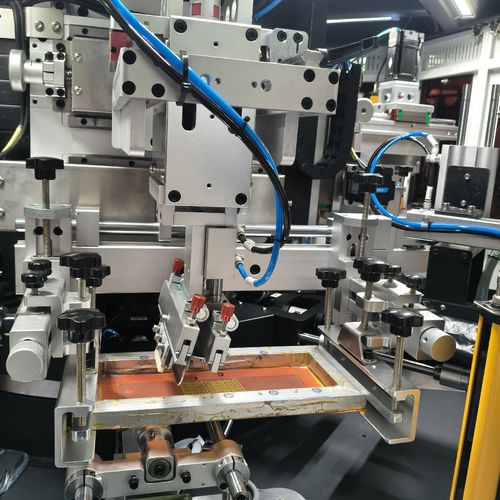

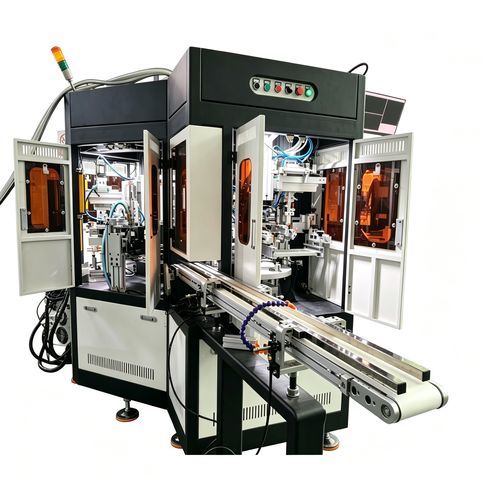

Automatic screen printer G2S-2C1D

2-colormonochromewith UV curing system

Overview
This integrated automatic screen printing machine performs sequential 2‑color cylindrical side printing (e.g., bottle caps) and 1‑color flat/top printing in a single production flow. Built for packaging lines in cosmetics, beverage and pharmaceutical industries, it features full servo control and optional CCD vision for precise registration on variable or unmarked surfaces.

Technical Data
Model — G2S-2C1D
Cylindrical printing diameter — 20 – 45 mm
Product height (printing length) — 30 – 100 mm
Max. output — 2400 – 2,700 pcs/h
UV power — 3,000 W (LED/UV optional)
Power supply — 380V, 3P, 50/60 Hz
Air pressure — 6 – 8 Bar

Key Features

• Combined process — sequentially prints cylindrical side graphics (2 colors) and flat/top graphics (1 color) without intermediate handling.
• Full servo drive — servo control for rotation, indexing, squeegee motion and registration ensures repeatable accuracy and high throughput.
• Optional CCD vision — enables accurate alignment on featureless or variable products for perfect overprint registration.
• Built‑in plasma treatment — improves ink adhesion on glass, plastics and coated substrates.
• Anti‑static dust removal — integrated cleaning reduces particle‑related defects prior to printing.
• Automatic loading/offloading — supports continuous feeding with optional hopper loader and manipulator for post‑print handling.
• Precision indexing — imported divider delivers stable station positioning.
• Operator interface — rotatable touchscreen HMI for intuitive operation, quick job changeover and real‑time monitoring.
• Flexible curing — UV, LED or ceramic drying modules to match ink and material requirements.

Typical Applications

• Cosmetic jars and containers
• Wine, spirits and beverage bottle caps (side‑wall decoration)
• Parts requiring combined side‑wall graphics and top/flat printing in one pass

Additional Information
The G2S-2C1D is configurable with optional modules (CCD positioning, plasma, anti‑static, hopper loader, manipulator) to suit specific production layouts and quality standards.

Technical specifications

• Model: G2S-2C1D
• Cylindrical printing diameter: 20 – 45 mm
• Product height (printing length): 30 – 100 mm
• Maximum output: 2400 – 2,700 pcs/h
• UV curing power: 3,000 W (LED/UV optional)
• Power supply: 380V, 3P, 50/60 Hz
• Air pressure requirement: 6 – 8 Bar
• Drive system: Full servo‑drive for rotation, indexing, squeegee movement and registration
• Optional modules: CCD vision positioning, plasma surface treatment, anti‑static dust removal, hopper loader, manipulator
• Control: Rotatable touchscreen HMI with job changeover and real‑time monitoring
• Curing options: UV, LED, or ceramic drying
• Intended industries: Cosmetic, beverage, pharmaceutical packaging
