Servo-driven screen printing machine SZD-106-F

fully-automaticcolorfor the glass industry

Fully Automatic One Color High-Speed Round /Flat Vision Screen Printing Machine

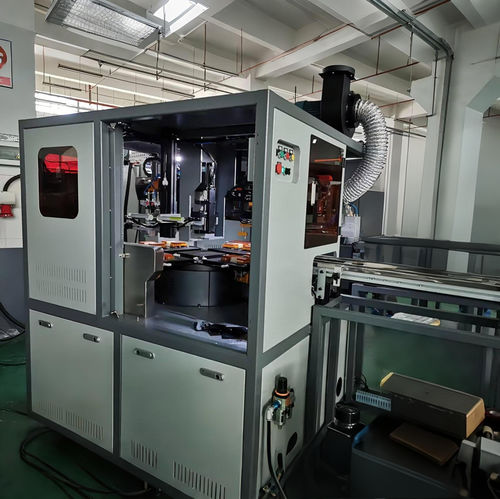

The Innovance System represents a leap forward in automated cap decoration, integrating precision robotics, intelligent sensing, and efficient curing into one seamless production line. Designed for maximum throughput and consistent quality, this system expertly handles the complete process—from precise cap pickup to final curing—delivering flawless screen printing on cosmetic, pharmaceutical, and industrial closures with minimal operator intervention.




Technical Specifications

• Core System: Innovance Precision Control System
• Printing Efficiency: 50-60 pieces per minute (PPM)
• Product Range: Diameter 30-100 mm | Height 10-20 mm
• LED Curing Power: 8 kW
• Air Pressure Requirement: 0.6-0.8 MPa

Key Features & Advantages

• Robotic Precision Handling: A 2-axis servo horizontal transfer robot ensures gentle, accurate pick-and-place from conveyor to fixture, enabling reliable high-speed feeding.
• Intelligent Process Control: Integrated photoelectric sensors identify cap orientation (e.g., latch position) for perfect registration before printing.
• Synchronized Rotary Processing: A precision rotary table smoothly transfers caps through pre-treatment, printing, and curing stations in a continuous, optimized cycle.
• Instant High-Power Curing: An 8kW LED curing system provides rapid, energy-efficient drying for superior print durability and immediate post-process handling.
• End-to-End Automation: From feeding and alignment to printing, curing, and unloading, the entire workflow is fully automated to boost productivity and reduce labor costs.
• Automated Workflow
• Cap Feeding & Positioning: The servo robot picks caps from the infeed conveyor and places them into a pre-positioning fixture.
• Orientation Verification: Photoelectric sensors confirm the caps latch position to ensure correct alignment.
• Transfer to Main System: The robot then places the oriented cap onto the main rotary table fixture.
• Sequential Processing: The rotary table indexes the cap through pre-treatment, screen printing, and LED curing stations.
• Finished Product Unloading: Completed caps are automatically discharged, ready for packaging or next-stage assembly.
• Typical Applications
• Ideal for high-quality screen printing on a wide range of caps, including:
• Cosmetic packaging (creams, lotions, lipstick cases)
• Pharmaceutical closures (vials, medicine bottles)
• Food and beverage lids
• Industrial and chemical containers
•

•
