Automatic screen printing machine CNC106-4C

fully-automatic2-color3-color

Automatic 4-Color Servo Silk Screen Printing Machine Multifunction Round Oval Flat Square Plastic Container Glass




Overview

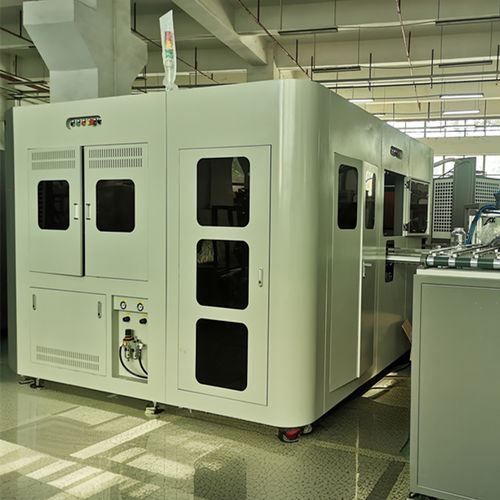

This advanced 4-Color Servo Screen Printing Machine is engineered for high-speed, high-precision decoration on a wide range of containers, including glass and plastic bottles, cups, and tubes. Supporting cylindrical, flat, and square shapes (Ø20-100mm, H30-300mm), it integrates an efficient LED curing system and multi-station servo technology to deliver exceptional print quality and operational flexibility for diverse production needs.
Core Features

• Integrated LED Curing System: Provides instant, energy-efficient curing ideal for plastic bottles, flexo tubes, water cups, and other heat-sensitive substrates.
• Universal Ink & Color Flexibility: Supports UV or LED inks for 1-4 color jobs, and specialized LED inks for extended 5-8 color applications, meeting diverse graphic requirements.
• Multi-Format Handling: Masterfully prints on cylindrical bottles, flat panels, and square containers within a versatile size range (Diameter: 20-100mm, Height: 30-300mm).
• High-Precision Servo System: An 8 to 20-station servo-driven system ensures ±0.1mm registration accuracy, featuring automatic color alignment and dual CCD vision for bottom and body registration.

Technical Specifications

• Printing Process: 4-Color Screen Printing (expandable to 5-8 colors)
• Configuration: 8-20 workstations (configurable)
• LED Curing: 365nm wavelength, 20W/cm² intensity
• Production Speed: Up to 45-65 pieces per minute (PPM)
• Positioning Accuracy: ±0.1mm

Applications

• Beverage & Cosmetics: Cosmetic jars, perfume bottles, milk bottles
• Daily Consumables: Tea cups, water cups, shampoo/lotion bottles, cleanser tubes
• Pharmaceutical & Laboratory: Medicine vials, ampoules, glassware marking
• Food Packaging: Specialty condiment bottles

Key Advantages: Why Choose Us

• Proven Manufacturer Expertise: 25 years as an original ODM manufacturer with in-house factory and engineering team, combined with 11 years of LED printing and 20 years of export experience.
• Guaranteed Precision & Quality: Servo and dual-CCD technology ensure flawless registration and consistent output.
• Certified & Reliable: CE-certified machines backed by 24/7 global technical support.
• Customizable Solutions: Drying and curing integration can be tailored to your specific production line and substrate requirements.
