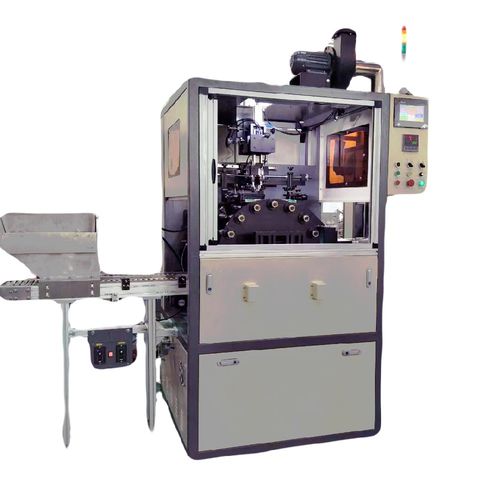

Automatic screen printing machine SZD-103-L

fully-automaticmonochromefor plastic bottles

Compact Single-Color Screen Printer for Round Small Cylindrical Products








This versatile screen printing machine is designed for high-efficiency, single-color decoration on a wide range of small-diameter cylindrical items. It is ideal for applying logos, text, or simple graphics to pens, markers, eyeliner, lipstick cases, small tubes, and metal or plastic lids. The machine supports optional mechanical positioning and flame treatment to ensure print quality and adhesion on various materials.
Technical Specifications

• Product Compatibility:
• Outer Diameter: 15 – 60 mm
• Length: 25 – 150 mm
• Curing Options: UV, LED, or Hot Air
• Utilities:
• Power Supply: 380V AC, 3-Phase, 50Hz, 3 kW
• Compressed Air: 0.6 – 0.8 MPa
• LPG (for optional flame treatment): 0.15 MPa
• Machine Footprint (L×W×H): 2800 × 2600 × 2900 mm

Key Features & Advantages

• Wide Application Range: Expertly handles diverse small cylindrical products from cosmetics to stationery.
• Flexible Curing & Treatment: Choose from multiple drying methods and add optional flame treatment for superior ink adhesion on challenging surfaces.
• Precision Optional: Optional mechanical positioning system ensures consistent print registration.
• Compact & Efficient Design: Robust construction within a optimized footprint, suitable for various production environments.
• Cost-Effective Solution: Provides reliable, high-quality single-color decoration ideal for short runs and product customization.

Typical Applications

• Cosmetics: Lipstick, eyeliner, mascara cases
• Stationery: Pens, markers, highlighters
• Packaging: Small tubes, sample containers, metal/plastic lids
• Promotional Items: Custom branded cylindrical goods
