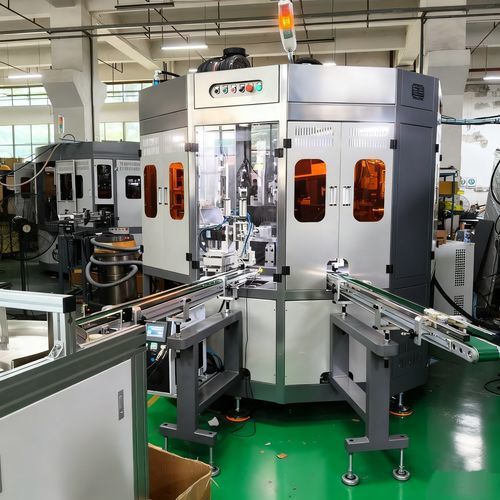

Servo-driven screen printing machine

fully-automaticsemi-automatic2-color

Fully Automated Multi-Process Round Screen Printing Machine Hot Stamping Machine and Thermal Transfer Equipment


The SZD-R4H is a state-of-the-art, fully automatic 4-station rotary indexing system that seamlessly integrates 2-color screen printing, 1-color hot foil stamping, and 1-color thermal transfer printing into a single, high-precision production line. Engineered for the ultra-precise decoration of small-diameter premium packaging components, it combines an automatic feeding system with a high-resolution CCD vision positioning system to achieve remarkable registration accuracy of ±0.1mm. This system is the ideal solution for high-volume, high-quality finishing of luxury cosmetic, beverage, and gift packaging components.
Technical Specifications

• Model: SZD-R4H
• Integrated Processes: 2-Color Screen Printing 1-Color Hot Stamping 1-Color Heat Transfer
• Component Size Range: Diameter 15–40 mm | Height 15–60 mm
• Production Speed: 2,700 – 3,300 pcs/h
• Registration Accuracy: ±0.1 mm
• Positioning System: High-resolution CCD Vision
• Feeding System: Fully Automatic

Core Advantages

• Unmatched Triple-Process Integration: Uniquely combines screen printing, foil stamping, and thermal transfer in one flexible platform, enabling complex, multi-finish decorations in a single pass.
• Vision-Guided Precision: A CCD vision system ensures flawless registration (±0.1mm), which is critical for the impeccable quality demanded by luxury brands.
• Specialist for Small Components: Perfectly engineered for high-speed, precise handling of small items such as lipstick cases, nail polish caps, spirit bottle closures, and perfume caps.
• High-Speed, High-Quality Output: Delivers industrial-scale throughput of up to 3,300 pieces per hour without compromising on finish quality or detail.

Ideal Applications

• Cosmetics: Lipstick cases, nail polish caps, small cream jars, compact cases.
• Beverage: Premium spirit caps, aluminum closures, wine and liquor bottle lids.
• Luxury Packaging: Perfume caps, high-end gift box components, specialty promotional items.
