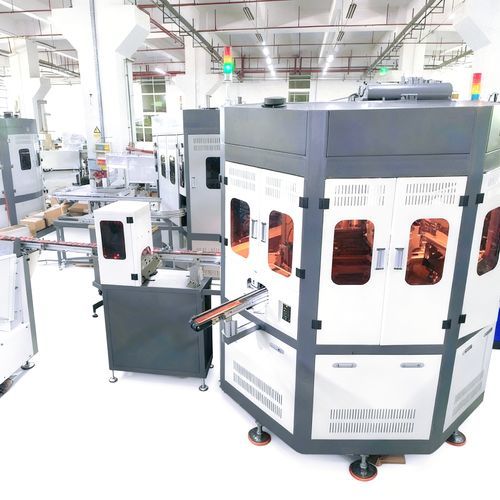

Automatic screen printing machine SZD-S106

fully-automatic2-color3-color

SZD-S106 Intelligent Cosmetic Packaging Printing System


The SZD-S106 is a high-precision, fully integrated printing system that combines automatic positioning, flame treatment, vision alignment, 2-color screen printing, and LED curing into one seamless automated workflow. Specifically engineered for premium cosmetic packaging—including glass, acrylic, and PET bottles, lipstick cases, and round or conical containers—it supports multi-color overprinting and foil stamping in a single operation. Equipped with a CCD vision positioning system, it ensures exceptional registration accuracy and enables efficient, continuous production.


Technical Specifications

• Model: SZD-S106
• Max Printing Diameter: 20–40 mm (machine size adaptable to product diameter and color setup)
• Max Printing Length: 25–120 mm
• Curing System: LED / UV (configurable)
• Control Interface: Rotatable iPad-style HMI for intuitive operation

Key Features

• Complete Automation: Integrates automatic loading, flame treatment, printing, curing, and offloading in one flow; optional hopper loader available.
• Precision Vision Alignment: CCD positioning system guarantees accurate registration for consistent print quality.
• Enhanced Print Readiness: Optional anti-static dust cleaning and automatic flame treatment ensure optimal surface adhesion.
• High-Speed & Stable Performance: Full servo-driven system paired with an imported high-precision divider enables reliable, high-accuracy operation.
• Flexible Drying Options: Supports UV, LED, or ceramic curing systems to suit different inks and materials.
• Expandable Handling: Optional robotic manipulator for fully automated product transfer and positioning.
