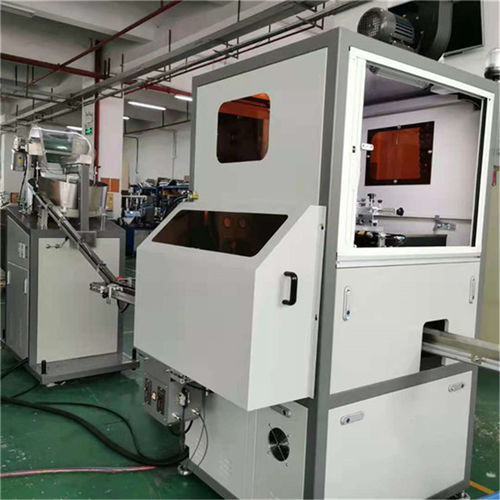

Servo-driven screen printing machine SZD-103-LD

fully-automatic2-colorfor plastic bottles

SZD-103-LD 16-Station Dual-Color Cap Printing & Hot Stamping System
Top and Side Screen Printing /hot Stamping Machine


The SZD-103-LD is a versatile 16-station, dual-process decorating system designed for high-precision printing and foiling on the side and top surfaces of round caps and tubes. It enables flexible combinations of screen printing and hot stamping—applying up to two colors—and is widely used for enhancing vodka bottle caps (plastic or metal), cosmetic tubes, and various cylindrical closures. The system supports configurations such as side/top hot stamping, side/top screen printing, or a hybrid of screen printing with hot foiling.
Technical Specifications

• Process Capability: 2-color screen printing and/or hot stamping (side & top)
• Product Compatibility:
• Outer Diameter: 20 – 60 mm
• Max. Length: 150 mm
• Utilities:
• Power Supply: 380V, 3 kW
• Compressed Air: 0.6 – 0.8 MPa
• LPG (for flame treatment): 0.15 MPa

Core Features

• Flexible Process Combination: Configure for side/top hot stamping, side/top screen printing, or a mix (e.g., screen print side hot foil top).
• High-Capacity 16-Station Design: Enables continuous production with multiple caps in process simultaneously for optimal throughput.
• Precise Registration: Ensures accurate alignment for both screen printing and hot stamping on curved and top surfaces.
• Wide Material Compatibility: Effectively decorates plastic caps, metal lids, and small tubes.
• Integrated Automation: Supports automatic feeding, precise positioning, and efficient curing/drying for a streamlined workflow.

Typical Applications

• Vodka & spirit bottle caps (plastic, metal)
• Cosmetic and toiletry tubes
• Premium cylindrical closures requiring combined print and foil effects
