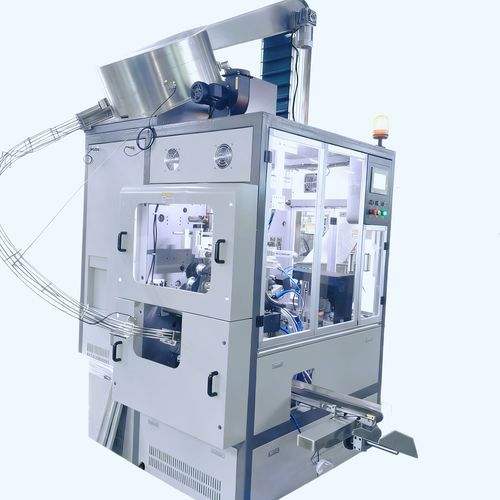

Servo-driven screen printing machine SZD-103-LT

2-colorhigh-speedservo-driven

SZD-103-LT Dual-Surface Cap Decorating System


The SZD-103-LT is an advanced, integrated decorating system designed for high-end cap finishing. It seamlessly combines side-surface cylindrical screen printing with top-surface tampo (pad) printing in a single automated cycle, enabling complete 2-color decoration of round caps in one pass. Engineered for precision, it is ideal for wine, vodka, cosmetic, and beverage caps that require impeccable registration.


Technical Specifications

• Cap Compatibility:
• Diameter: 15 – 60 mm
• Height: 25 – 60 mm
• Production Speed: 3,000 – 3,600 pcs/h (50 – 60 pcs/min)
• Printing Process: 2-color (side screen printing top pad printing)
• Curing Options: LED or UV
• Power Supply: 380V, 3-Phase, 50Hz
• Workstations: 16 stations for continuous high-speed operation
•


Core Features & Benefits

• Integrated Dual-Surface Decoration: Uniquely combines side-screen and top-pad printing in one machine for a complete 2-color finish in a single operation.
• High-Precision Servo System: Full servo-driven mechanism ensures exceptional registration accuracy for both side and top graphics.
• User-Friendly Operation: Features a PLC control system with a touchscreen HMI for easy setup, recipe storage, and quick changeover.
• Versatile Material Handling: Suitable for both metal and plastic caps, including wine caps, spirit lids, nail polish caps, and beverage closures.
• Enhanced Finish Options: Optional modules include hot stamping, flame treatment, and CCD/mechanical registration systems for superior ink adhesion and flawless alignment.
