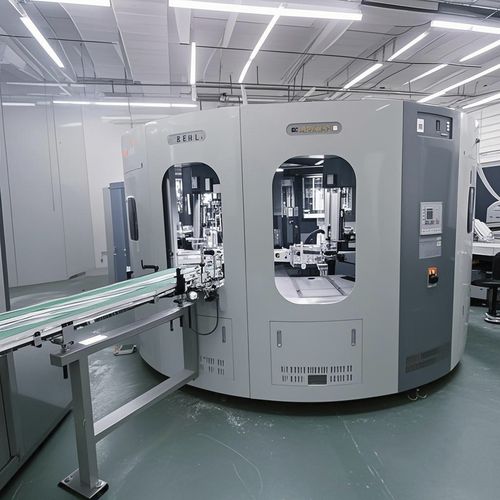

Automatic screen printing machine CNC106-4C

fully-automatic2-color3-color

4-Color Servo Ceramic Cylindrical Screen Printing Machine | Dual-System for Ceramic & LED Printing




Overview
This advanced 4-Color Servo Screen Printing Machine is a versatile dual-system solution engineered for high-precision decoration on glass, ceramic, and various substrates. It uniquely integrates high-temperature ceramic printing with instant LED-UV curing in one platform, handling cylindrical, flat, and square containers. Combining servo-driven accuracy, automatic registration, and flexible ink compatibility, it is the ideal choice for demanding applications in cosmetics, pharmaceuticals, beverage packaging, and electronics.
Core Features

• Dual-Ink System & Curing
• Ceramic Mode: Equipped with an automatic screen heater for high-temperature ceramic/glass paints, creating permanent, scratch-resistant finishes.
• LED-UV Mode: Integrated 365nm LED curing system provides instant, energy-efficient drying for heat-sensitive materials.
• Universal Ink Compatibility
• Supports both high-temperature ceramic inks and standard LED-UV inks to meet diverse printing requirements.
• Multi-Format Handling
• Processes cylindrical bottles, flat panels, and square containers.
• Size Range: Diameter: 20–100 mm | Height: 30–300 mm.
• High-Precision Servo System
• Advanced servo drive ensures ±0.1mm registration accuracy.
• Features automatic color alignment and an optional dual CCD vision system for flawless overprinting.
• Configurable with 8 to 20 workstations for optimal throughput.
• Technical Specifications
• Printing Process: 4-Color Screen Printing (expandable to 8 colors)
• Printing Systems: High-Temperature Ceramic & LED-UV Dual Mode
• LED Specifications: 365 nm wavelength, 20 W/cm² intensity
• Production Speed: Up to 45-60 pieces per minute (PPM)
• Positioning Accuracy: ±0.1 mm
• Registration System: Servo-driven with optional Dual CCD Vision
• Power Supply: Standard industrial configuration
• Applications
• Cosmetics & Perfumery: Jars, perfume bottles, luxury packaging
• Pharmaceutical: Medicine vials, ampoules, lab glassware
• Food & Beverage: Specialty condiment bottles, premium beverage glass
• Electronics & Industrial: Component labeling on various substrates
• Key Advantages
• Dual-Technology Expertise: Combines 25 years of thermal printing and 11 years of LED curing experience in one platform.
• Maximum Flexibility & Agility: Switch between permanent ceramic fusion and instant LED curing for diverse production needs.
• Guaranteed Precision: Servo and vision systems ensure consistent, high-quality results for complex graphics.
• Certified & Reliable: CE-certified design backed by global technical support.
• Customizable Integration: Drying and curing modules can be tailored to your specific production line.
