Fully-automatic screen printer G3S

3-colorfor glass bottlesfor the glass industry

Overview
G3S fully automatic 3-color dual-output high-temperature ceramic screen printing machine for round glass bottles, designed for inline production with annealing and packing lines.

Tagline
Precision decoration for glass beverage bottles — up to 110–120 PPM.

Introduction
The G3S series is engineered for high-volume production of decorated glass containers using ceramic high-temperature inks. The system supports integration with infeed/outfeed conveyors, annealing lehrs and final sorting/packing lines, enabling continuous inline operation for beverage, spirits and specialty glass producers.

Key Specifications & Advantages

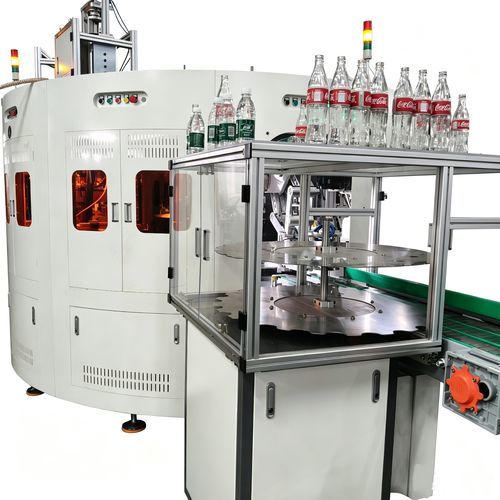

• Dual-mold high-speed printing: 20-station rotary dial processes 2 bottles per cycle
• Ceramic ink compatibility: optimized for high-temperature ceramic inks (600°C firing range)
• Production speed: 110–120 PPM (approx. 6,600–7,200 bottles/hour)
• Auto ink feeder: automatic melting and constant feed to maintain production consistency
• Full automation: compatible with automatic feeding, sorting and packing subsystems
• Precision registration: Innovance servo system accuracy ±0.1 mm
• Bottle adaptability: diameter 30–70 mm; height 80–260 mm

Technical Highlights

• 8 independent servo-driven print stations (A/B mold configuration)
• 80 kW heavy-duty power system for continuous operation
• Compact footprint: Ø3400 × H2200 mm

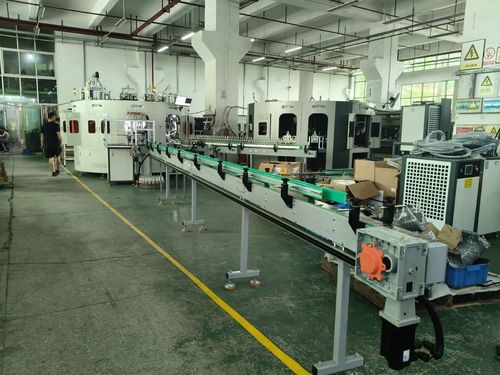

• Infeed/outfeed conveyors with variable sorting screws for automated handling

Ideal For

• Carbonated beverage bottles
• Spirits and wine bottles
• Premium beverage containers
• Cosmetic and chemical glassware
• Pharmaceutical jars

Advantages

• Vision-positioning system to correct misalignment during printing
• High throughput (110–120 PPM) to serve large production runs
• Ceramic inks provide resistance to washing and sterilization
• Seamless integration with automatic glass feeding, annealing lehr and downstream sorting/packing conveyors

Technical specifications

• Model / Series: G3S
• Printing method: 3-color automatic screen printing, dual-output
• Dial stations: 20-station rotary dial
• Bottles per cycle: 2 bottles simultaneously
• Production speed: 110–120 PPM (approx. 6,600–7,200 bottles/hour)
• Ink type: Ceramic high-temperature ink (600°C firing range)
• Ink system: Auto ink feeder with automatic melting and constant feeding
• Registration accuracy: ±0.1 mm (Innovance servo system)
• Servo stations: 8 independent servo-driven print stations (A/B mold)
• Power system: 80 kW heavy-duty, suitable for continuous 24/7 operation
• Footprint (approx.): Ø3400 × H2200 mm
• Bottle adaptability: Diameter 30–70 mm; Height 80–260 mm
• Material handling: Infeed/outfeed conveyors with variable sorting screws; integrates with annealing lehr and final packing conveyors
