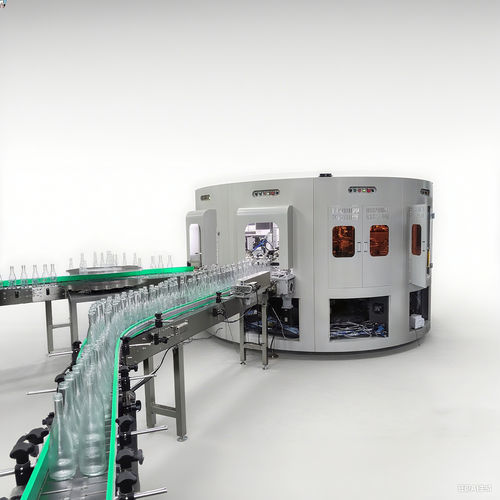

Screen printing machine G4S

for ceramicsfor cylindrical objectsfor glass

G4S Series: Fully Automatic High-Temperature Ceramic Screen Printing System for Glass Bottles
Overview
The G4S Series represents a revolution in high-volume, high-precision glass bottle decoration. This fully automatic 4-color screen printing machine is engineered for premium ceramic ink applications, delivering industrial-grade speeds of 80–100 bottles per minute. Designed for seamless integration with annealing lehrs and conveyor systems, it provides a complete inline solution for brands requiring durable, food-safe decoration on carbonated drink bottles, spirits, beverage glassware, and cosmetic containers.
Key Specifications

• Production Speed: 80–100 PPM (4,200–6,000 bottles/hour)
• Bottle Compatibility: Diameter 30–86mm | Height 80–330mm
• Printing Process: 4-color ceramic screen printing
• Ink System: High-temperature color glaze, firing range up to 600C
• Registration Accuracy: ±0.1mm (Innovance servo system)
• Machine Footprint: Ø3400 × H2200mm
• Power System: 80kW heavy-duty design for 24/7 operation

Technical Highlights

• Dual-Mold High-Speed Printing: 20-station rotary dial with A/B mold configuration processes two bottles simultaneously per cycle.
• Full Servo-Driven Precision: Eight independent servo-controlled print stations ensure consistent, high-accuracy registration.
• Complete Line Integration: Equipped with auto feeders, variable-pitch sorting screws, and synchronized infeed/outfeed conveyors.
• Vision Positioning System: Eliminates misalignment and weld-line defects for flawless print quality.
• Rugged & Reliable Design: Built for continuous high-temperature operation with minimal maintenance.

Core Advantages

• Unmatched Durability: Ceramic glaze finishes withstand dishwashing, sterilization, and harsh handling.
• Maximum Productivity: 100 PPM throughput delivers superior ROI for high-volume orders.
• Print-Perfect Precision: Solves traditional registration challenges on curved glass surfaces.
• End-to-End Automation: Ready for seamless integration into full inline manufacturing and lehr lines.

Ideal Applications

• Carbonated beverage bottles (e.g., Coca-Cola)
• Spirits & wine bottles
• Premium beverage and cosmetic glassware
• Pharmaceutical and chemical jars
