Servo-driven screen printer LD-01-A

monochromefor plastic bottlesfor plastic tubes

Description

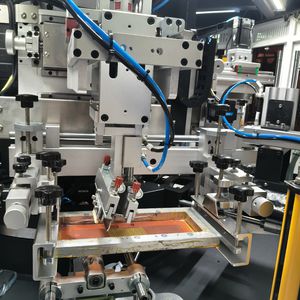

LD-01-A – CCD vision single-color screen printing machine for round, oval & square containers. Designed for precise packaging decoration of glass bottles, jars, cosmetic tubes and irregular shapes, the system ensures accurate graphic placement even on surfaces without registration lugs. An optional CCD vision module enables advanced alignment on unmarked or featureless surfaces.

Technical Data
Parameter: Value
Output: Max. 35 pcs/min (normal: 20–27 pcs/min)
Power Supply: 380V, 3P, 50/60 Hz
Air Pressure: 6–8 Bar
Round containers:
Diameter: 20–100 mm
Print length: 30–180 mm
Square / irregular containers:
Width: 20–100 mm
Print length: 30–180 mm

Core Features

• Fully servo‑driven axes (pre‑registration, product rotation, multi‑directional movement) for reproducible accuracy.

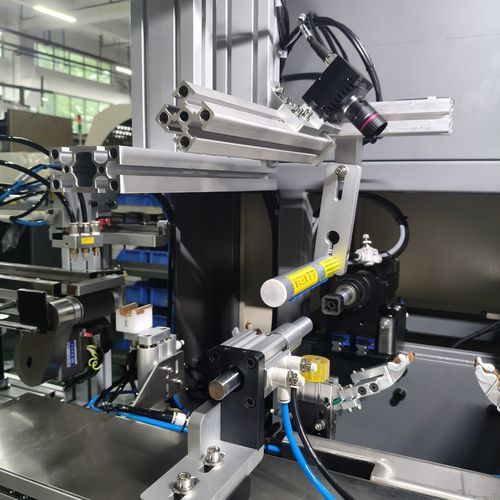

• Optional CCD vision for precise registration on mark‑less or irregular surfaces.
• Multi‑shape compatibility: round, oval and square containers handled in one setup.
• Full‑circumference or multi‑side printing depending on tooling.

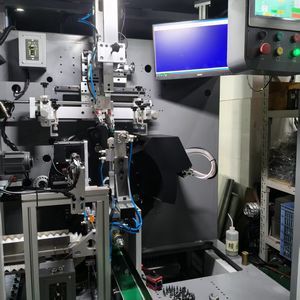

• Quick changeover via intuitive HMI and rapid tooling swap.
• Automatic loading/unloading with conveyor feeding (vertical or horizontal) and optional robotic handling for post‑print sorting.
• Integrated UV/LED curing options for immediate, energy‑efficient drying.

Typical Applications

• Glass bottles and jars without registration lugs
• Cosmetic tubes, lipstick cases and personal care packaging
• Oval and square packaging for beverages, spirits and premium goods
• Any high‑value container requiring precise, repeatable decoration

Technical specifications

• Model: LD-01-A
• Output: Max. 35 pcs/min (normal: 20–27 pcs/min)
• Power Supply: 380V, 3P, 50/60 Hz
• Air Pressure: 6–8 Bar
• Container shapes: Round, Oval, Square, Irregular
• Round container diameter: 20–100 mm
• Printable length (round / square): 30–180 mm
• Square/irregular width: 20–100 mm
• Drive: Fully servo‑driven axes (pre‑registration, rotation, multi‑directional)
• Registration: Optional CCD vision system for featureless surfaces
• Printing capability: Full‑circumference or multi‑side printing
• Changeover: Quick tooling change with intuitive HMI
• Material handling: Automatic loading/unloading; optional robotic sorting
• Curing: Integrated UV/LED curing
