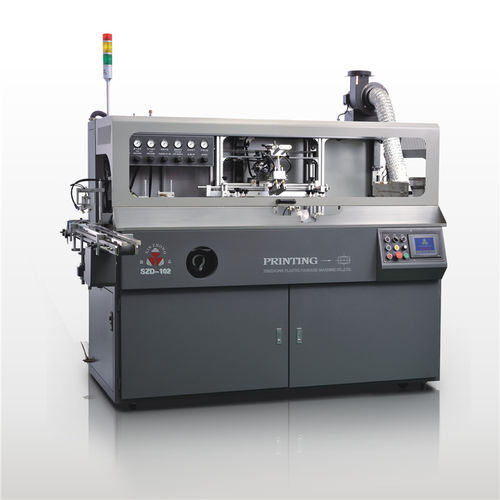

Automatic screen printing machine SZD-102-B

fully-automatic2-color3-color

Modular 1-Color Screen Printing Machine UV LED for Cylindrical & Oval Containers
This versatile screen printing system is designed for high-quality, multi-color decoration on cylindrical, oval, and square containers. Its innovative modular design allows individual printing units to operate independently or be seamlessly connected into an in-line system for complex multi-color jobs. Combining a stable transmission structure with quick changeover capabilities, it delivers flexible, efficient, and excellent printing performance for a wide range of packaging needs.
Technical Specifications

• Printing Capacity:
• Round Container: Diameter 20–100 mm | Length 20–300 mm
• Oval Container: Width 25–120 mm | Length 25–300 mm
• Square Container: Length 100–200 mm | Width 40–100 mm
• Machine Dimension (Per Unit): 1908 × 1000 × 1500 mm
• Power Supply: 380V, 3-Phase, 50/60 Hz
• Air Supply: 5–7 bar

Key Features

• Scalable Modular Design: Configure from 1 to 9 colors. Units function perfectly as standalone machines or integrated into a continuous in-line system.
• Complete Automation: Features automatic loading/offloading (with optional hopper for round bottles), auto flame treatment, and surface orientation for optimal print quality.
• Multi-Surface Printing: Equipped with an automatic 180-degree rotation mechanism for oval and square bottles, enabling smooth and precise dual-side decoration.
• Stable & Efficient Performance: Robust transmission system ensures fast, smooth bottle transfer and exceptional overprinting accuracy.
• Advanced Control & Curing: Managed by a reliable Panasonic PLC and user-friendly HMI. Optional UV or LED curing systems are available.
• Quick Changeover: Engineered to minimize setup time between different production runs.

ApplicationsIdeal for high-quality printing on a wide range of containers, including:

• Daily Consumables: Detergent bottles, shower gel, shampoo bottles
• Food & Beverage: Yogurt cups
• Writing & Pharma: Marker pens, medicine containers
• General Packaging: Various cylindrical, oval, and square plastic containers
