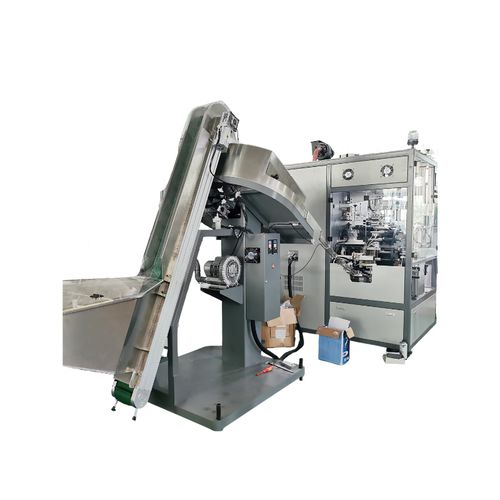

Automatic screen printing machine SZD-103S

fully-automaticcolorfor plastic bottles

SZD-106S High-Speed Servo Screen Printing Machine for Caps & Round Containers Maskara Pen Lisptick






The SZD-106S is a high-precision, servo-driven screen printing system designed for the accurate and efficient decoration of round containers and caps. Engineered specifically for high-volume applications such as wine bottle lids, vodka caps, and nail polish caps, it ensures precise registration—especially critical for printing away from parting lines—to deliver vibrant graphics that make your products stand out. With 16 workstations and optional hot stamping, this machine combines speed, flexibility, and superior print quality.
Technical Specifications

• Printing Process: High-precision screen printing (hot stamping optional)
• Compatible Objects: Metal caps, plastic lids, round bottles & jars
• Key Requirement: Accurate registration away from parting lines
• Printing Stations: 16 stations for continuous high-speed operation
• Control System: Imported PLC with intuitive HMI interface
• Positioning System: Full servo motor drive for precise motion control
• Optional Features: Mechanical registration, automatic flame treatment, hot stamping module

Core Features & Advantages

• Servo-Driven Precision: Multiple servo motors ensure exceptional registration and printing accuracy, critical for complex designs and consistent quality.
• High-Speed Output: Optimized for fast cycle times, supporting high-volume production demands without compromising detail.
• User-Friendly Operation: Easily set up and save bottle/cap parameters directly on the HMI for quick changeovers and repeat jobs.
• Versatile Functionality: Capable of printing on both metal and plastic surfaces, with an optional hot stamping module for premium metallic finishes.
• Enhanced Print Readiness: Optional automatic flame treatment ensures optimal ink adhesion on various materials.
