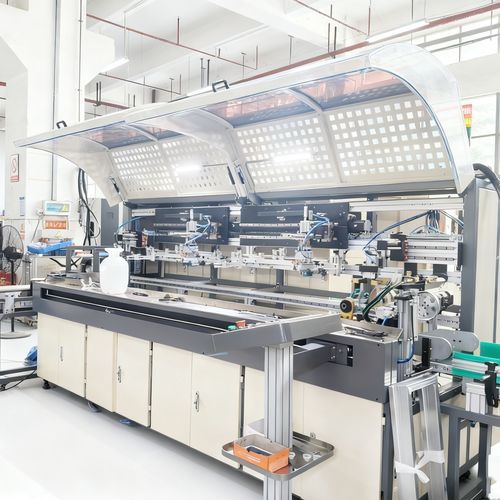

Multi-color screen printing machine

automaticfor cylindrical products

Patented Linear Screen Printer: Precision Registration Without Bottom Marks




Overview
Our innovative linear curved surface screen printing machine is engineered to solve a core industry challenge: achieving precise multi-color registration on cylindrical bottles and jars that lack bottom positioning references. Combining patented technology with servo-driven accuracy, this system delivers exceptional print quality ideal for short to medium runs of 1 to 2 colors—offering a cost-effective, flexible, and highly reliable decorating solution.
Core Innovation: Mark-Free Registration
The patented alignment system ensures precise overprinting without relying on container bottom marks. This eliminates a common production constraint and expands decorating possibilities for standard and irregularly shaped containers.




Technical Specifications

• Product Name: Linear Curved Surface Screen Printing Machine
• Applicable Shapes: Round, oval, square, flat, and irregular containers
• Max. Printing Diameter: Ø 100 mm (Outer Diameter up to Ø 260 mm)
• Printing Speed: 200 – 500 pcs/hour (varies with 1 or 2 colors)
• Air Supply: 5 – 7 bar
• Drive System: Full servo motor control
• Key Components: Premium international brands (Schneider, SICK)
• Standard Curing: Long-life LED system (optimized for plastics)

Key Features & Advantages

• Patented Registration Technology: Enables precise overprinting without bottom marks.
• Full Servo-Driven Precision: Ensures consistent, high-accuracy alignment and motion control.
• Rapid Changeover & Recipe Memory: Store settings for different containers to minimize downtime.
• High-Efficiency Automation: Includes auto feed/offload, with options for hopper loading and surface treatment (flame/corona).
• Durable LED Curing: Fast, energy-efficient ink drying for plastic containers.
• Flexible Configuration: Available in 1 to 4 color units to match your production needs.

Applications

• Containers: Beer & beverage bottles, glasses, jars, shampoo bottles, water cups
• Materials: Compatible with glass and various plastics

Optional Configurations

• 1 to 5 color printing units
• Automatic loading hopper
• Surface treatment system (flame or plasma)
