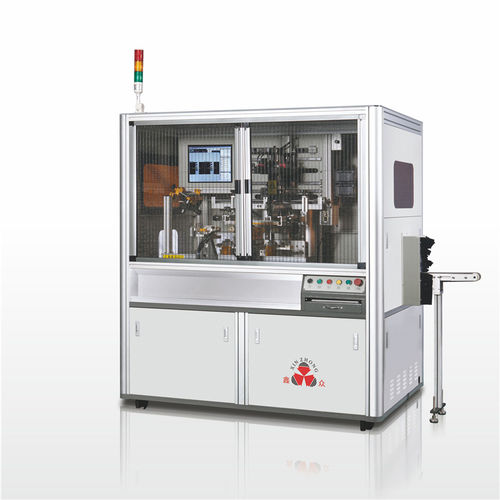

Automatic screen printing machine LD-01-A

fully-automaticmonochromecolor

1 Color High-Precision Screen Printing System for Complex & Elegant Containers CCD Servo Jar Bottle UV Screen Printing Machine




This specialized screen printing system is engineered for the demanding decoration of premium packaging, where precision is paramount. It expertly handles elegant glassware, jars without registration lugs, and cosmetic tubes requiring graphics precisely aligned away from parting lines. Compatible with round, oval, and square shapes, and offering an optional CCD vision system, it delivers flawless registration and exceptional print quality for high-value products.
Technical Specifications

• Power Supply: 380V, 3-Phase, 50/60 Hz
• Air Pressure: 6–8 Bar
• Printing Capacity:
• Round Containers: Diameter 20–100 mm | Length 30–180 mm
• Square/Irregular Containers: Width 20–100 mm | Length 30–180 mm

Core Features & Advantages

• Advanced Registration Solutions: Equipped with either high-precision mechanical registration or an optional CCD vision system to ensure perfect graphics placement, even on featureless surfaces.
• Full Servo-Driven Precision: All critical axes—including pre-registration, product rotation, and multi-directional movement—are servo-controlled for unmatched accuracy and repeatability.
• Multi-Surface Printing Capability: Completes full circumferential prints on round objects or decorates multiple sides of oval/square containers in a single, efficient cycle.
• Rapid Changeover & Easy Operation: Features quick-change tooling and intuitive touchscreen controls for fast setup and minimal downtime between jobs.
• Flexible Automated Handling: Includes an automatic loading belt (configurable for upright or lying orientation) and optional manipulators for post-print product handling.
