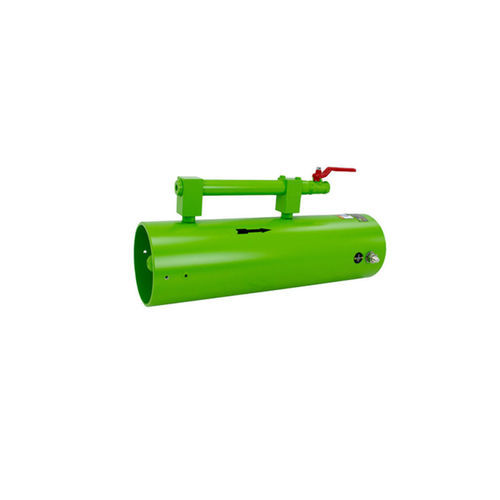

ATEX air mover 8 1614 0010

Product description
These pneumatic air movers operate on the Venturi principle to generate high-volume airflow without moving parts in the gas stream, ensuring maintenance-free operation and long service life. The integrated handle enables quick, mobile deployment for general-purpose blowing or suction tasks. Earthing is required for use in explosive atmospheres.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 2-6 bar
• Nominal diameter: 100.00 mm
• ATEX: II2GExhIIBT6Gb

Technical data
ORDER NO.: 8 1614 0010
ATEX Specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 2-6 bar
Nominal diameter: 100.00 mm
Volume flow (unrestricted blowing) at 2 bar: 8.2 m³/min
Volume flow (unrestricted blowing) at 3 bar: 11.7 m³/min
Volume flow (unrestricted blowing) at 4 bar: 14.9 m³/min
Volume flow (unrestricted blowing) at 5 bar: 17.7 m³/min
Volume flow (unrestricted blowing) at 6 bar: 20.5 m³/min
Volume flow (unrestricted sucking) at 2 bar: 6.0 m³/min
Volume flow (unrestricted sucking) at 3 bar: 8.2 m³/min
Volume flow (unrestricted sucking) at 4 bar: 10.8 m³/min
Volume flow (unrestricted sucking) at 5 bar: 13.8 m³/min
Volume flow (unrestricted sucking) at 6 bar: 14.5 m³/min
Air consumption (at 2-6 bar): 1.6-2.3 m³/min
Length: 410.00 mm
Material of housing: Aluminium
Connection: G3/8" female
Noise level LpA: 100.8 dB(A)
Weight: 3.28 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

• Order No. 9 3707 0020 — Earthing cable complete

Technical specifications

• Order Number: 8 1614 0010
• ATEX Specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 2-6 bar
• Nominal diameter: 100.00 mm
• Volume flow (blowing) 2–6 bar: 8.2 / 11.7 / 14.9 / 17.7 / 20.5 m³/min
• Volume flow (sucking) 2–6 bar: 6.0 / 8.2 / 10.8 / 13.8 / 14.5 m³/min
• Air consumption (2-6 bar): 1.6-2.3 m³/min
• Length: 410.00 mm
• Housing material: Aluminium
• Connection: G3/8" female
• Noise level LpA: 100.8 dB(A)
• Weight: 3.28 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
