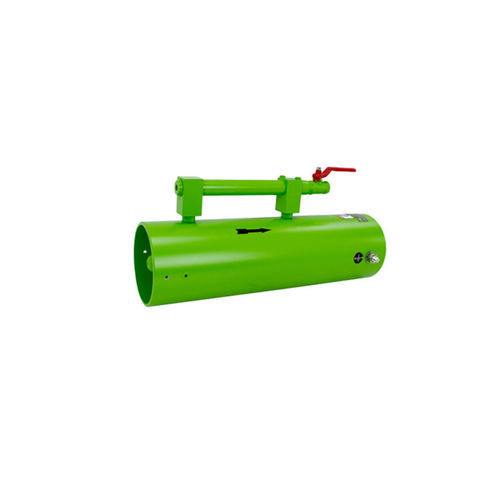

ATEX air mover 8 1618 0010
Add to favorites
Compare this product
Characteristics
- Other characteristics
- ATEX
Description
Product description
These pneumatic air movers operate on the Venturi principle and are maintenance-free with no wearing parts. The integrated handle enables mobile operation across a range of industrial applications. Earthing is required for safe operation.
Main attributes
Technical Data
Accessories
Technical specifications
These pneumatic air movers operate on the Venturi principle and are maintenance-free with no wearing parts. The integrated handle enables mobile operation across a range of industrial applications. Earthing is required for safe operation.
Main attributes
- Energy source: Pneumatic
- Operating pressure: 2-6 bar
- Nominal diameter: 150.00 mm
- ATEX: II2GExhIIBT6Gb
Technical Data
- Order no.: 8 1618 0010
- ATEX specification: II2GExhIIBT6Gb
- Energy source: Pneumatic
- Operating pressure: 2-6 bar
- Nominal diameter: 150.00 mm
- Volume flow (unrestricted blowing) at 2 bar: 21.2 m³/min
- Volume flow (unrestricted blowing) at 3 bar: 30.2 m³/min
- Volume flow (unrestricted blowing) at 4 bar: 36.3 m³/min
- Volume flow (unrestricted blowing) at 5 bar: 42.7 m³/min
- Volume flow (unrestricted blowing) at 6 bar: 49.8 m³/min
- Volume flow (unrestricted sucking) at 2 bar: 17.9 m³/min
- Volume flow (unrestricted sucking) at 3 bar: 24.1 m³/min
- Volume flow (unrestricted sucking) at 4 bar: 30.3 m³/min
- Volume flow (unrestricted sucking) at 5 bar: 35.2 m³/min
- Volume flow (unrestricted sucking) at 6 bar: 40.0 m³/min
- Air consumption (at 2-6 bar): 2.8-4.37 m³/min
- Length: 435.00 mm
- Housing material: Aluminium
- Connection: G1/2" female
- Noise level LpA: 103.8 dB(A)
- Weight: 5.16 kg
- Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
Accessories
- Earthing cable — Order No.: 9 3707 0020 — Earthing cable complete
Technical specifications
- Order number: 8 1618 0010
- ATEX specification: II2GExhIIBT6Gb
- Energy source: Pneumatic
- Operating pressure: 2-6 bar
- Nominal diameter: 150.00 mm
- Volume flow (blowing) 2–6 bar: 21.2 / 30.2 / 36.3 / 42.7 / 49.8 m³/min
- Volume flow (sucking) 2–6 bar: 17.9 / 24.1 / 30.3 / 35.2 / 40.0 m³/min
- Air consumption (2-6 bar): 2.8-4.37 m³/min
- Length: 435.00 mm
- Housing material: Aluminium
- Connection: G1/2" female
- Noise level LpA: 103.8 dB(A)
- Weight: 5.16 kg
- Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
