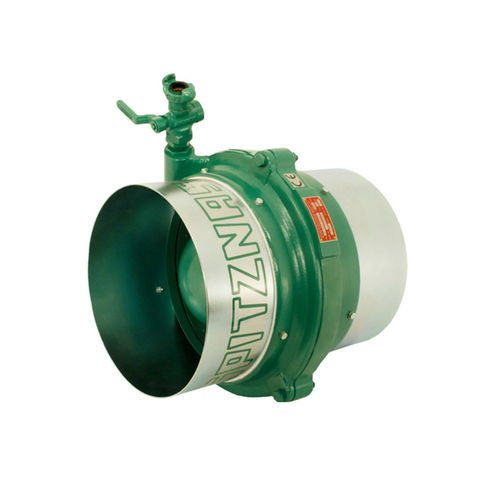

Axial fan 8 1502 0300

pneumaticfor pipesindustrial

Product description
Built-in pneumatic axial fan with 400 mm nominal diameter, designed for increased conveying volume. Earthing required.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 4 bar
• Nominal diameter: 400 mm

Technical data
ORDER NO.: 8 1502 0300
Energy source: Pneumatic
Operating pressure: 4 bar
Nominal diameter: 400 mm
Volume flow (unrestricted): 2.70 m³/s
Air consumption: 2.11 m³/min
Length: 417.00 mm
Quality of air: oil free
Noise level LpA: 92.0 dB(A)
Weight: 32.0 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

• Protective grill — Order No.: 8 1502 9015
• Protective grill — Order No.: 8 1502 9010 (incl. assembling screws)
• Flange according to DIN 21 603 — Order No.: 9 3001 0020
• Connecting piece, antistatic — Order No.: 9 3709 0270
• Quick collar, antistatic — Order No.: 9 3709 0310
• Air duct, antistatic, 5m — Order No.: 9 3709 0230
• Earthing cable complete — Order No.: 9 3707 0020

Technical specifications

• Order number: 8 1502 0300
• Energy source: Pneumatic
• Operating pressure: 4 bar
• Nominal diameter: 400 mm
• Volume flow (unrestricted): 2.70 m³/s
• Air consumption: 2.11 m³/min
• Length: 417.00 mm
• Quality of air: oil free
• Noise level LpA: 92.0 dB(A)
• Weight: 32.0 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
