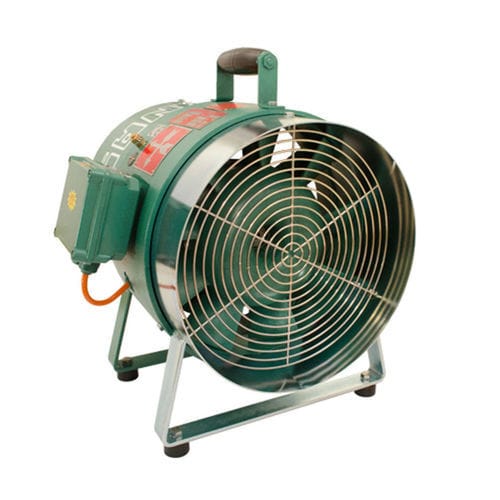

Axial fan 8 1020 0890

mobile230VACelectrically-powered

Product description
Axial electric fan designed for use in potentially explosive atmospheres. Nominal diameter 300 mm, protection class IP55. Supplied without switch, cable or plug. Earthing required before commissioning.

Main attributes

• Energy source: Electric
• Operating voltage: 230V/60Hz
• Nominal diameter: 300 mm
• ATEX: II2GExhIIBT3Gb

Technical data
ORDER NO.: 8 1020 0890
ATEX Specification: II2GExhIIBT3Gb
Energy source: Electric
Operating voltage: 230 Volt
Nominal diameter: 300.00 mm
Volume flow (unrestricted blowing): 1.20 m³/s
Motor input: 0.37 kW
Current consumption (230V): 2.20 A
Alternating current: 1 Phases
Frequency: 60 Hz
Safety class: IP 55
Protective system: EX-e-II-T4
Length: 390.00 mm
Speed (free): 3,370 1/min
Air connection dia. (smooth): 300.00 mm
Noise level LpA: 84.8 dB(A)
Vibration level: BV-3 m/s²
Weight: 20.5 kg
Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

• Order No. 8 1601 2070 — Protective grill
• Order No. 9 3001 0010 — Flange according to DIN 21 603
• Order No. 9 3709 0260 — Connecting piece, antistatic
• Order No. 9 3709 0300 — Quick collar, antistatic (300)
• Order No. 9 3709 0220 — Lutte, antistatisch, 5m
• Order No. 9 3703 0280 — Adapter, nominal dia. 300 mm reducing to 80 mm
• Order No. 9 3703 0290 — Adapter, nominal dia. 300 mm reducing to 100 mm
• Order No. 9 3703 0300 — Adapter, nominal dia. 300 mm reducing to 150 mm
• Order No. 9 3703 0050 — Adapter, nominal dia. 300 mm reducing to 200 mm
• Order No. 9 3703 0050 — Earthing cable complete

Technical specifications

• ORDER NO.: 8 1020 0890
• ATEX Specification: II2GExhIIBT3Gb
• Nominal diameter: 300 mm
• Operating voltage: 230 V / 60 Hz
• Motor input: 0.37 kW
• Volume flow (unrestricted blowing): 1.20 m³/s
• Current consumption (230V): 2.20 A
• Safety class: IP55
• Protective system: EX-e-II-T4
• Weight: 20.5 kg
• Noise level LpA: 84.8 dB(A)
